RTSKit

RTSKit is a top-down real-time-strategy starter kit for Unreal Engine 5.4, by CodeLikeMe. It is a C++ plugin with Blueprint access to everything, and it ships a working game you can use as the template for your own RTS: selection, orders, economy, building, walls and gates, training, combat, an AI opponent, a minimap, save and load, and a multiplayer-ready command model.

It is data-driven. Units, buildings, resources and factions are DataTable rows, not classes. It also ships a full low-poly medieval art set: characters, wildlife, buildings, props, icons, cursors and animations.

This page is both the documentation and the wiki for RTSKit 1.0. Everything is on it; use the table of contents to jump to a unit, a building or a system.

Current version

1.0

Unreal Engine

5.4

Know what is not in 1.0

There is no fog of war, tech tree, formations, naval play or multiplayer front end in RTSKit 1.0, and the AI is a demo opponent rather than a competitive one. Not in V1.0 lists everything plainly, so nobody buys the wrong thing.

The Villager, Infantry, Archer, Priest and Hero playing the shared idle clip, A_Char_Idle.

Overview

RTSKit is the layer every RTS needs before it can be a game: select units, give them orders, gather resources, place buildings, train an army, fight, save the match. It ships as a plugin with two modules, demo maps, art for a full medieval village, and an AI opponent that plays the same game you do.

Use it as your RTS template

Start from the demo map, swap in your art, edit the tables, and build on top. Because RTSKit is a plugin rather than a project, the same kit also drops into a game you already have.

A typical way to make it yours:

1. Play the demo map to see a whole match: gathering, building, training and the AI opponent.
2. Copy DT_Units and DT_Actions and edit rows: stats, costs, build times, what each building trains. See Data table reference.
3. Point the rows at your own meshes. Keep the two material slots in the same order so faction colour keeps working. See Faction colour.
4. Reparent a widget Blueprint to URTSKitHUDWidget and draw your own HUD, or start from WBP_HUD. See Build your own HUD.
5. Tune the AI commander, or swap in your own. See Swap the AI.

Three design rules

Three rules shape the whole design.

Entities are DataTable rows, not classes. A Villager, a Town Centre and a berry bush are all rows in DT_Units. Adding a unit type is a row edit. One Blueprint covers every plain unit, and one covers every plain building.

Every order goes through one server-side function. The player controller and the AI commander both implement IRTSKitCommander, and both land in URTSKitCommandLibrary. There is exactly one ownership check, one price check and one placement check, so the human path and the AI path cannot drift apart.

Selection is an interface, not a base class. IRTSKitSelectable is implemented by units, buildings and resource nodes. A new selectable type needs no change to selection, the marquee or the HUD.

Feature list

Camera and input

• Spring-arm RTS camera: WASD pan, screen-edge scroll with an easing ramp, wheel zoom that scales pan speed, auto-pitch toward overhead as you zoom out, and zoom toward the cursor.
• Alt + right-mouse orbit, middle-mouse drag pan, and a ground-clamped pivot.
• Perspective or orthographic, switchable at runtime for a classic isometric look.
• Enhanced Input throughout, with a bundled mapping context and input actions.
• The camera opens on your own faction’s start marker.

Selection and orders

• Click to select, drag for a marquee, click a portrait to narrow to one, shift-click to narrow to that type.
• Right-click is the universal order: move, gather, construct, attack, rally.
• Enemy buildings can be clicked for inspection, with no action cards.
• Context cursors: an axe over trees, a pickaxe over gold mines, a hammer over stone mines and your own construction sites, a sword over enemies. See Cursors.
• Drag marquee and hover health bars drawn on the HUD canvas.

Economy

• Resource nodes with finite stock, a mesh per depletion stage, and optional auto-replant at a cost (the Age of Empires farm cycle).

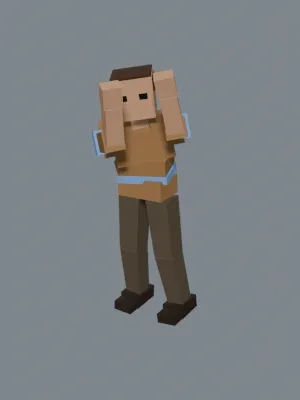

• A full gather loop: walk, harvest, carry a visible load with a tool in hand, deliver to the nearest drop-off that accepts that resource, return.
• Drop-offs are data: AcceptedResources on the building’s row.
• A unit’s row can name a resource node to leave behind when it dies, so a hunted animal can become food.
• Population: buildings provide the cap, train actions cost it.

Building

• A placement grid (200 cm cells by default) with footprints derived from the mesh.

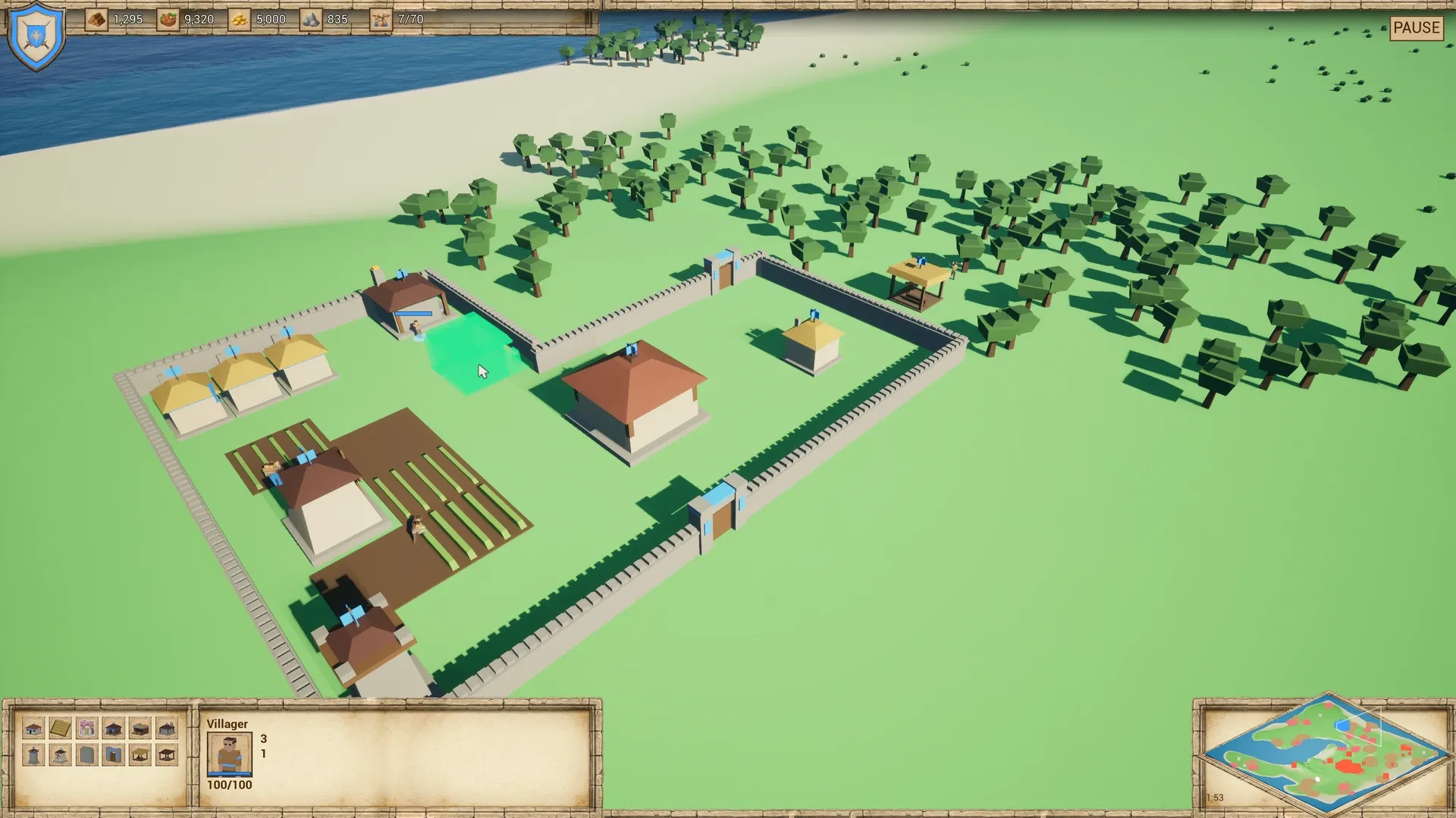

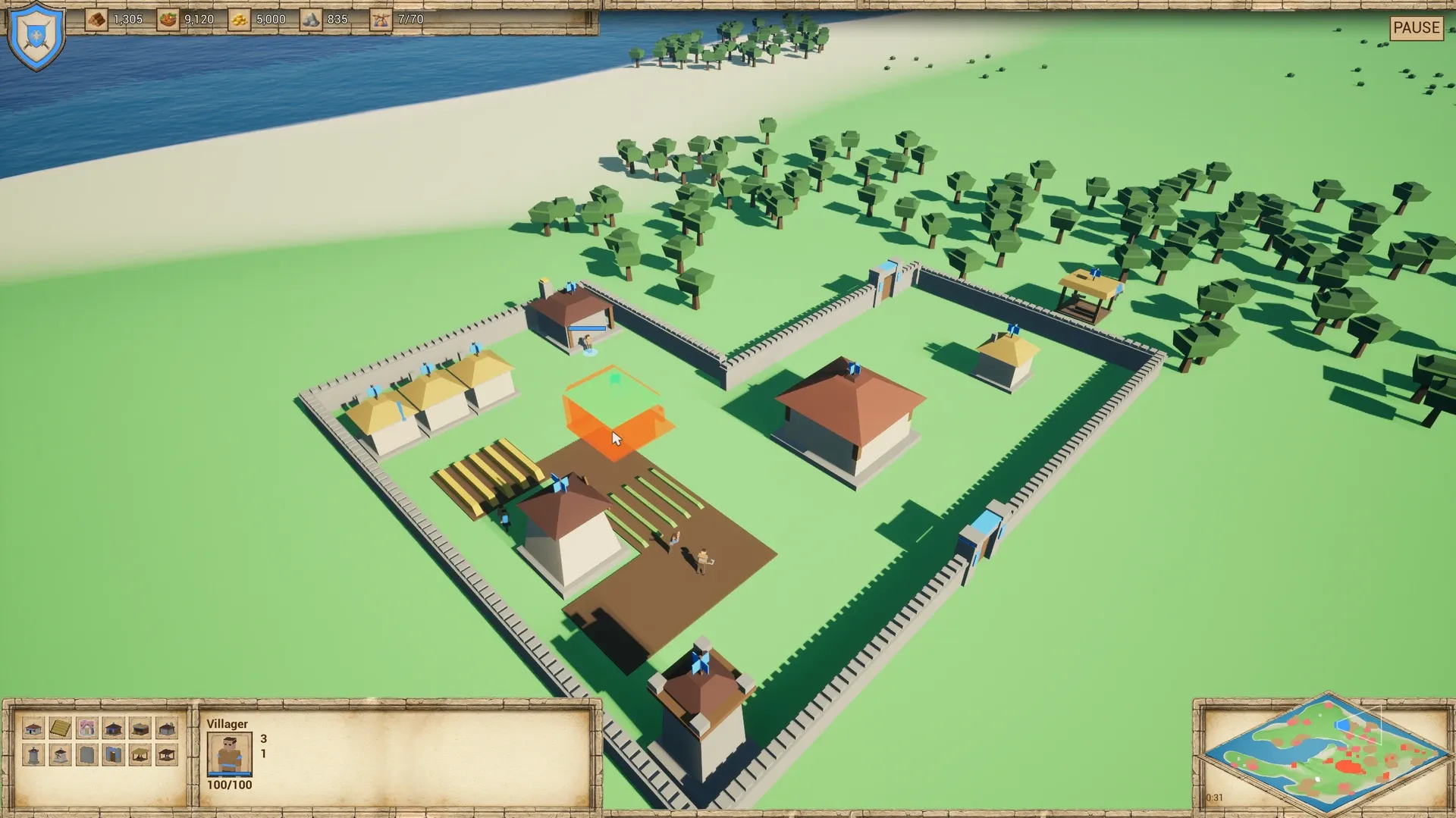

• A ghost preview that tints by validity, with ground, slope, water and overlap checks shared between the client preview and the server decision.

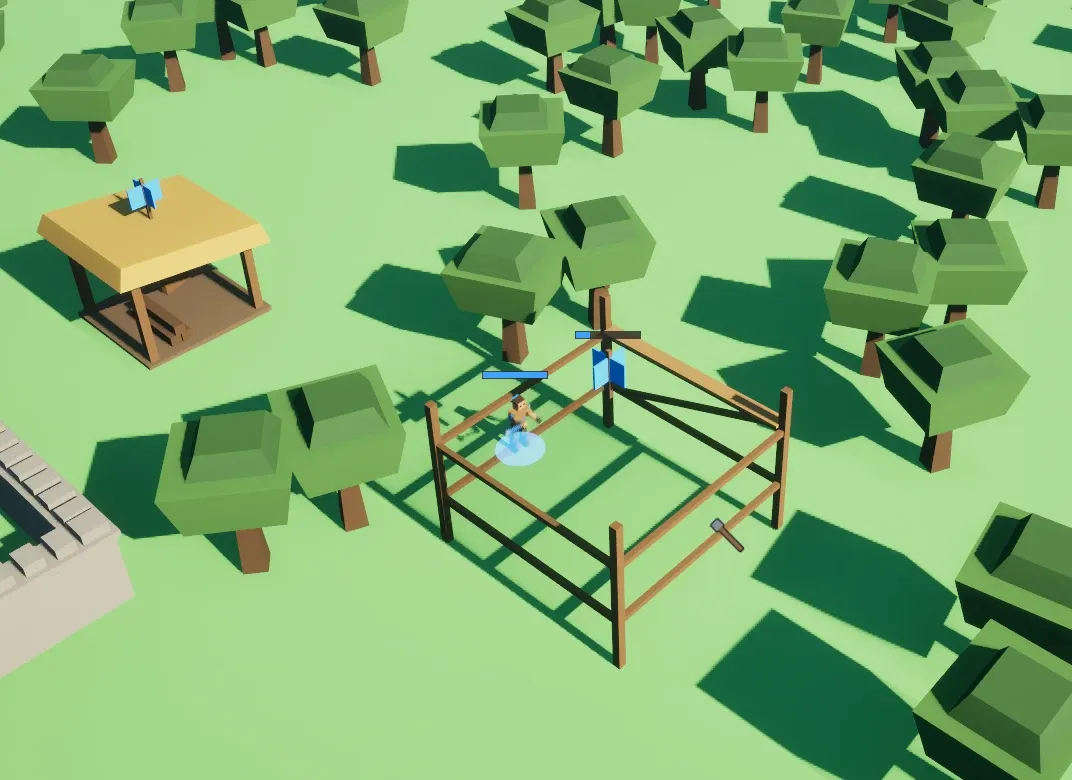

• Scaffolds, construction measured in villager-seconds, multiple builders, and builders that roll on to the next site.

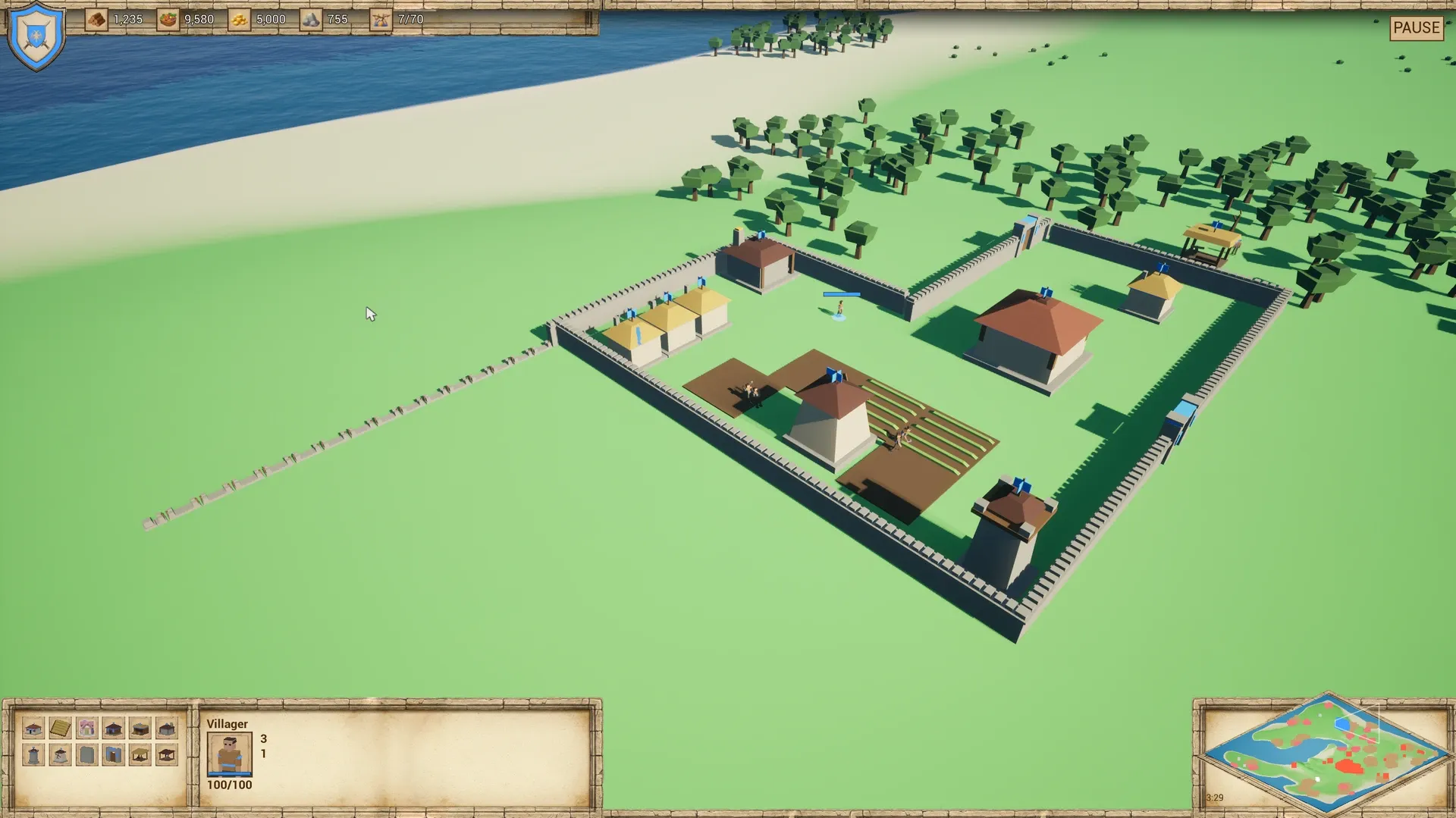

• Walls: drag a run, and the pieces autotile straight, corner, T, cross and end from their neighbours. Hold Shift to keep placing.
• Gates that open for friendly units and drop onto an existing wall line, replacing the pieces they cover.
• Demolish, on the Delete key or as a card action.

Combat

• Free-form stats (Health, Attack, Armor, Range, or whatever your game uses) on a component.
• Attack orders, an aggro radius for idle units, attack and death animations, and corpses.
• Buildings take damage, leave rubble and hand back their population.

HUD

• A URTSKitHUDWidget base class that solves the replication race: your Blueprint events fire with real numbers whichever order the faction, player state and game state arrive in.
• A command card built from the selection’s shared actions, with affordability, population and tag gating, and a formatted hover tooltip.
• Resource counters driven by DT_Resources, a population readout and a match clock.

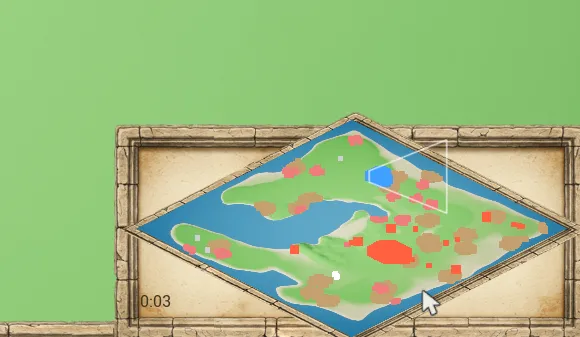

• A minimap with live blips, the camera frustum, click to jump and right-click to order, in square or Age of Empires-style diamond form.

AI commander

• The same interface as the player, server-only, no cheating.
• Economy: worker priorities that follow the stockpile, gatherers that rebalance, drop-off choice by walking distance, camps built at the gathering frontier, and a search that widens when a resource runs out locally.
• A build ladder with save-up behaviour, and houses raised on population pressure.

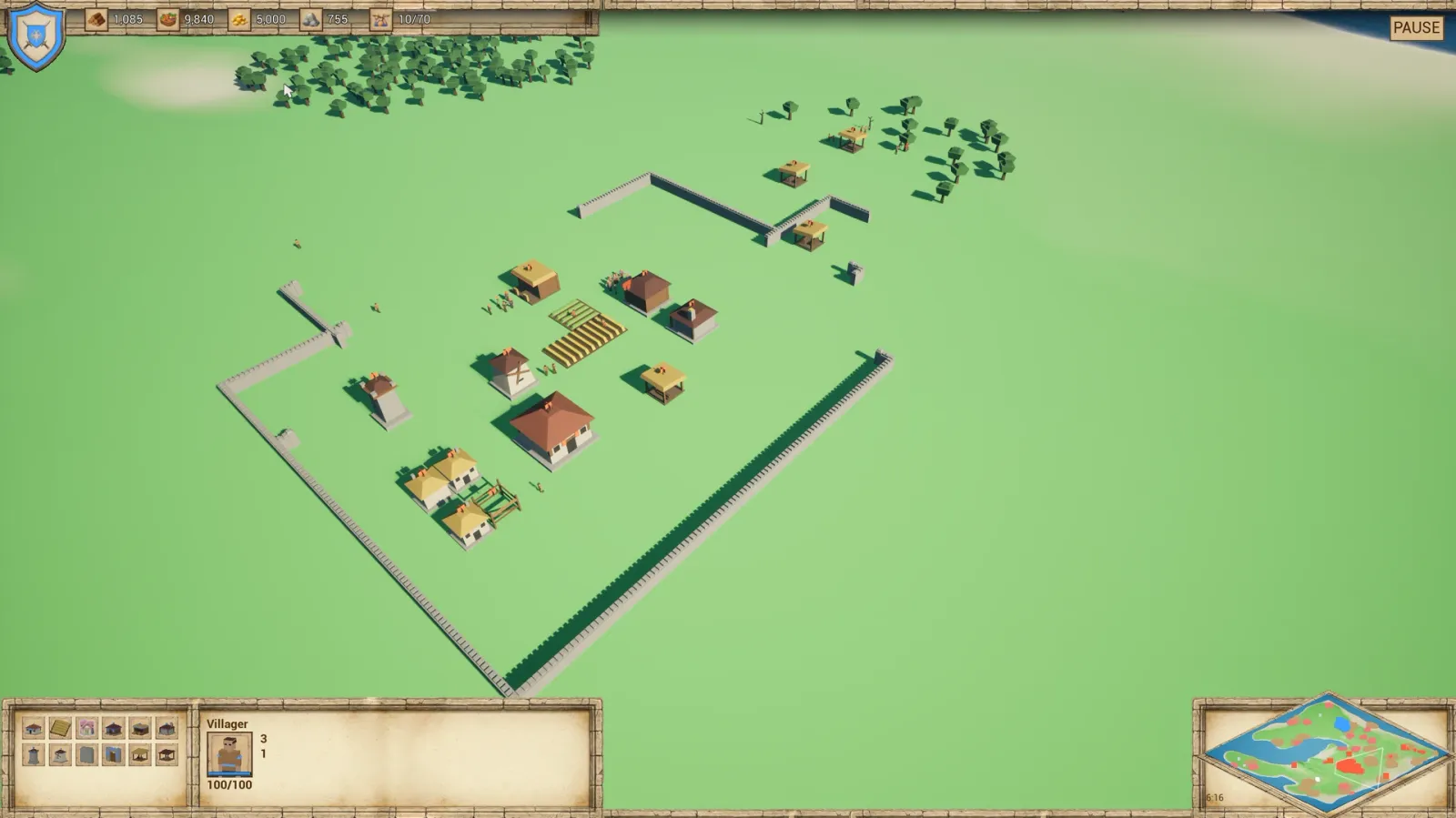

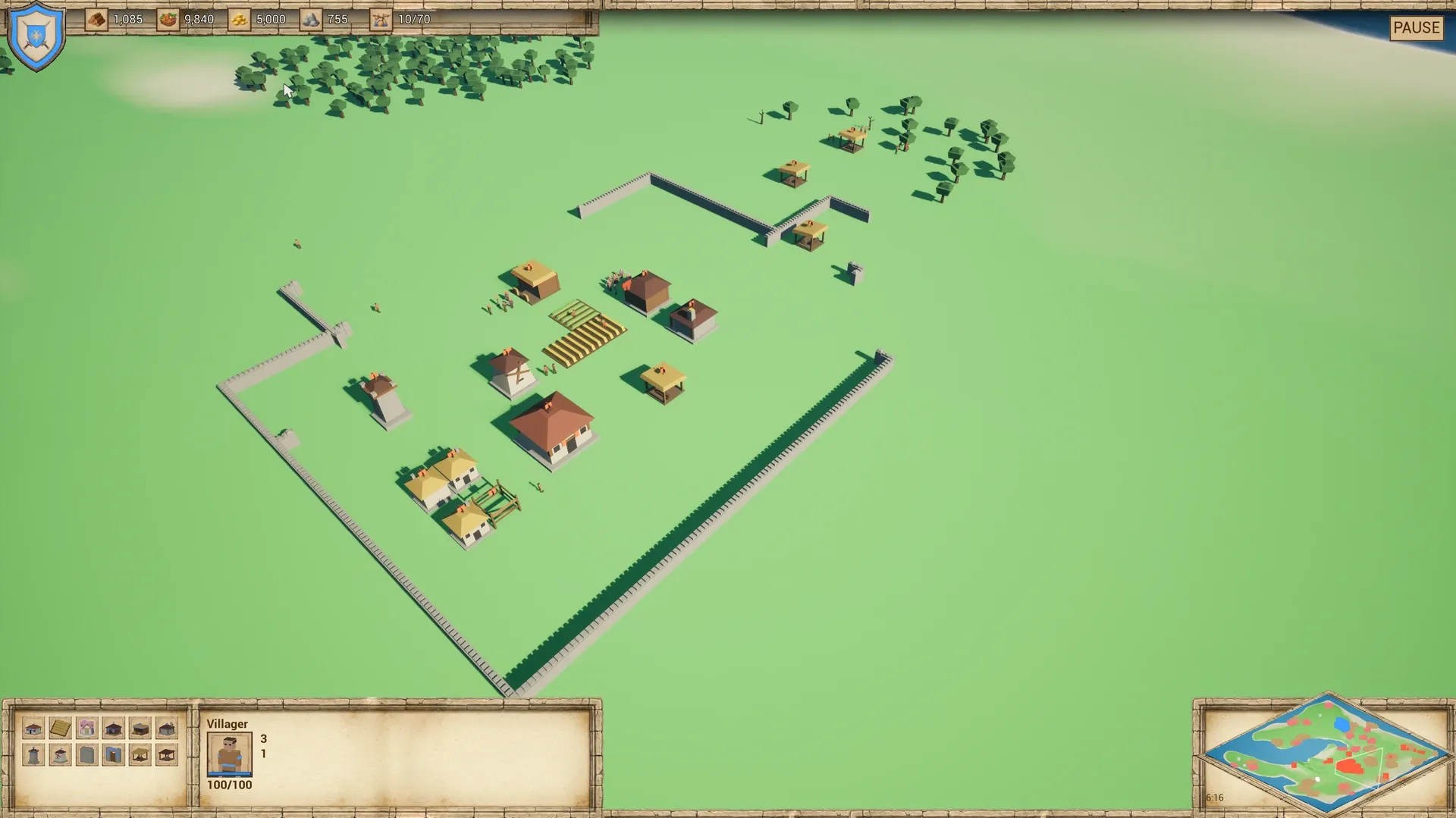

• A city-block settlement layout: one building type per block, with streets between types.
• Defences: a wall ring with gates and watchtowers, and a wider ring when the town outgrows it.
• Army training in a rotation, and leashed defence of its own base.

Map authoring

• ARTSKitMapDefinition: one actor per level that says how big the world is, where the water line sits, and how the minimap photographs it.
• ARTSKitFactionStart: place it, list what the faction starts with, press Populate.
• ARTSKitResourceScatter: forests in clumps, mines as lone finds, berry patches between.
• Everything is seeded and reproducible, and all of it works on fixed maps and on infinite streaming terrain.

Multiplayer and persistence

• Server-authoritative commands, replicated units, buildings and nodes, and client-side selection.
• Whole-match save and load: stockpiles, diplomacy, units, buildings mid-construction, train queues, rally points, node stock and the camera.

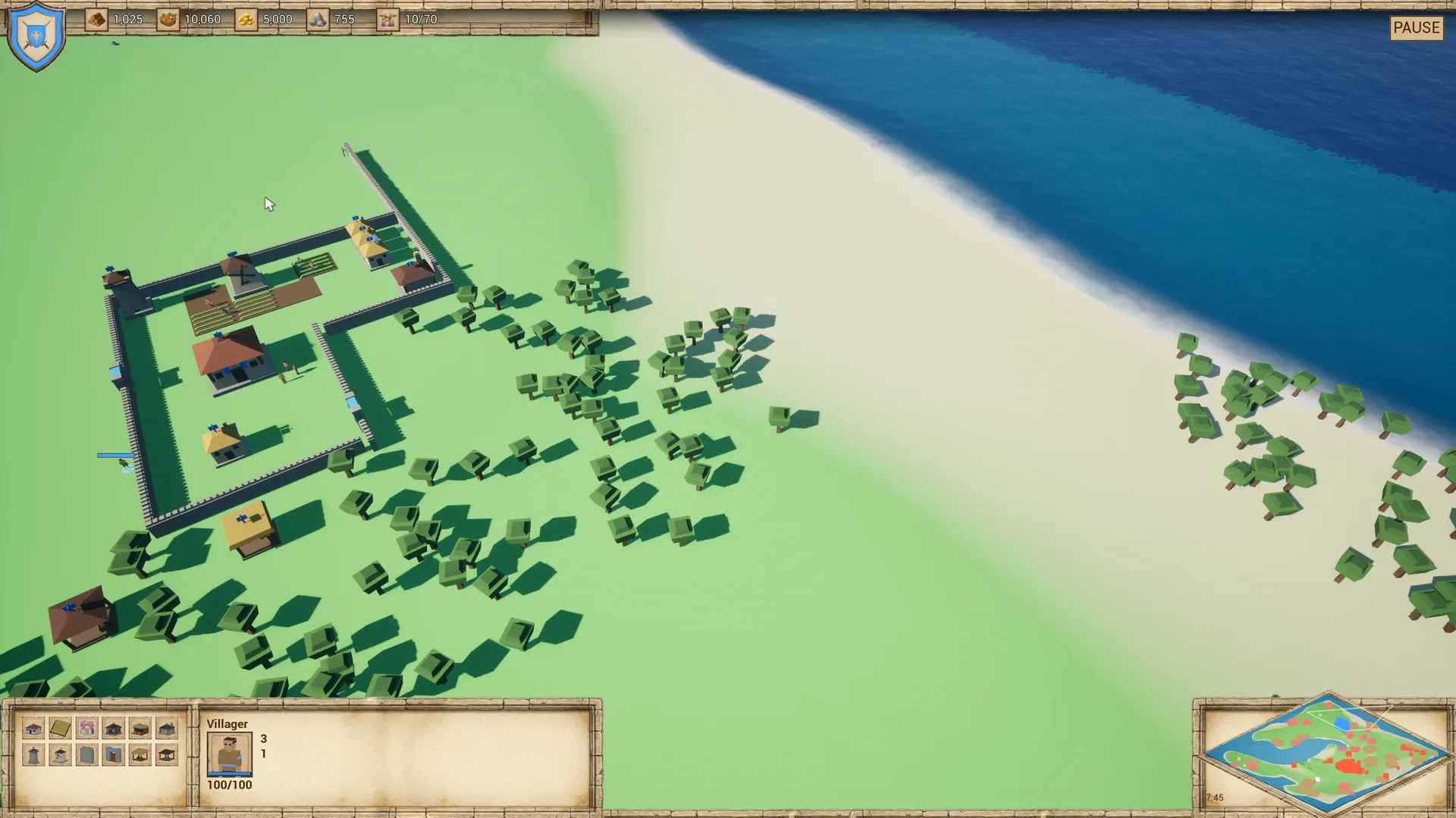

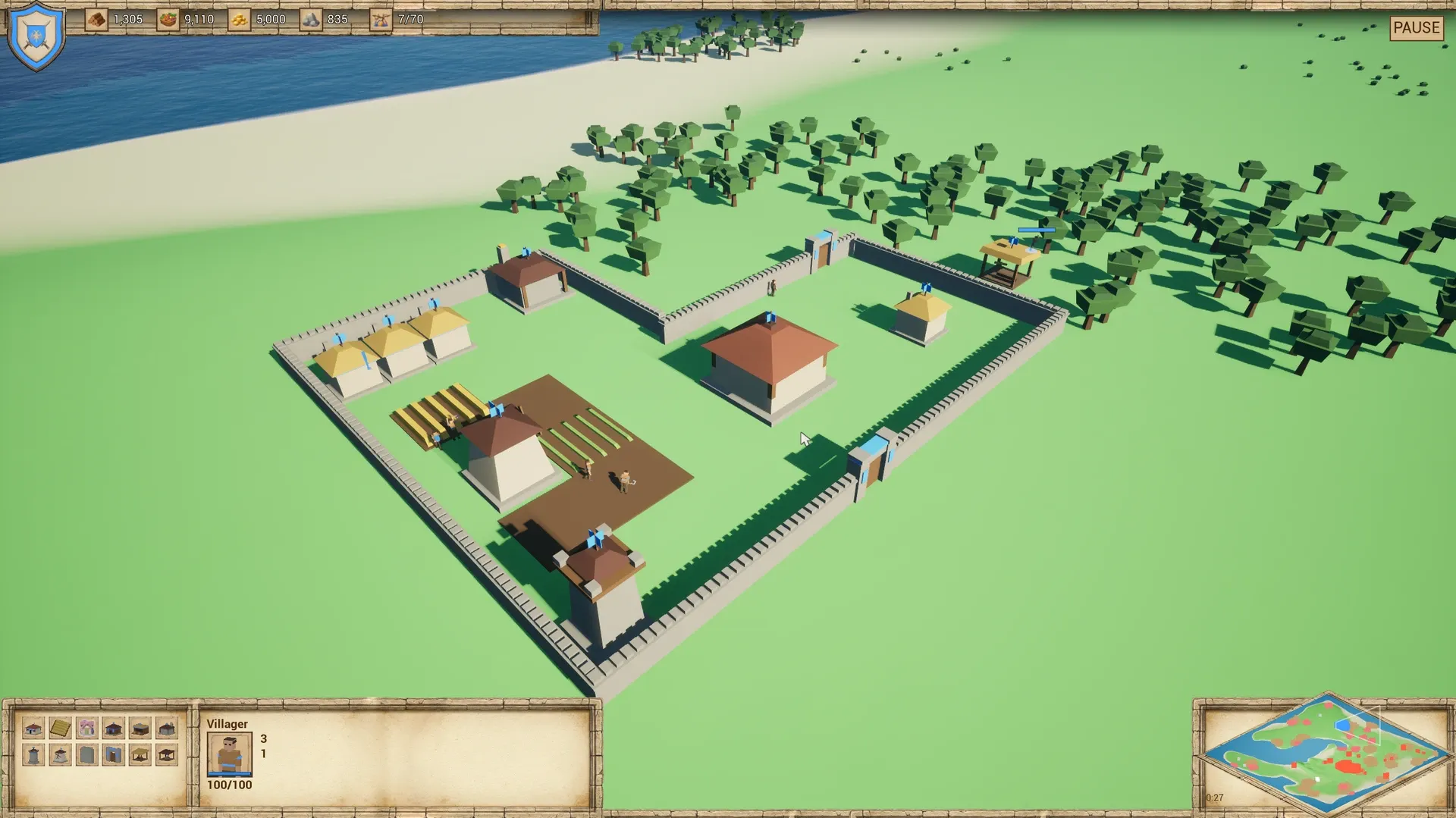

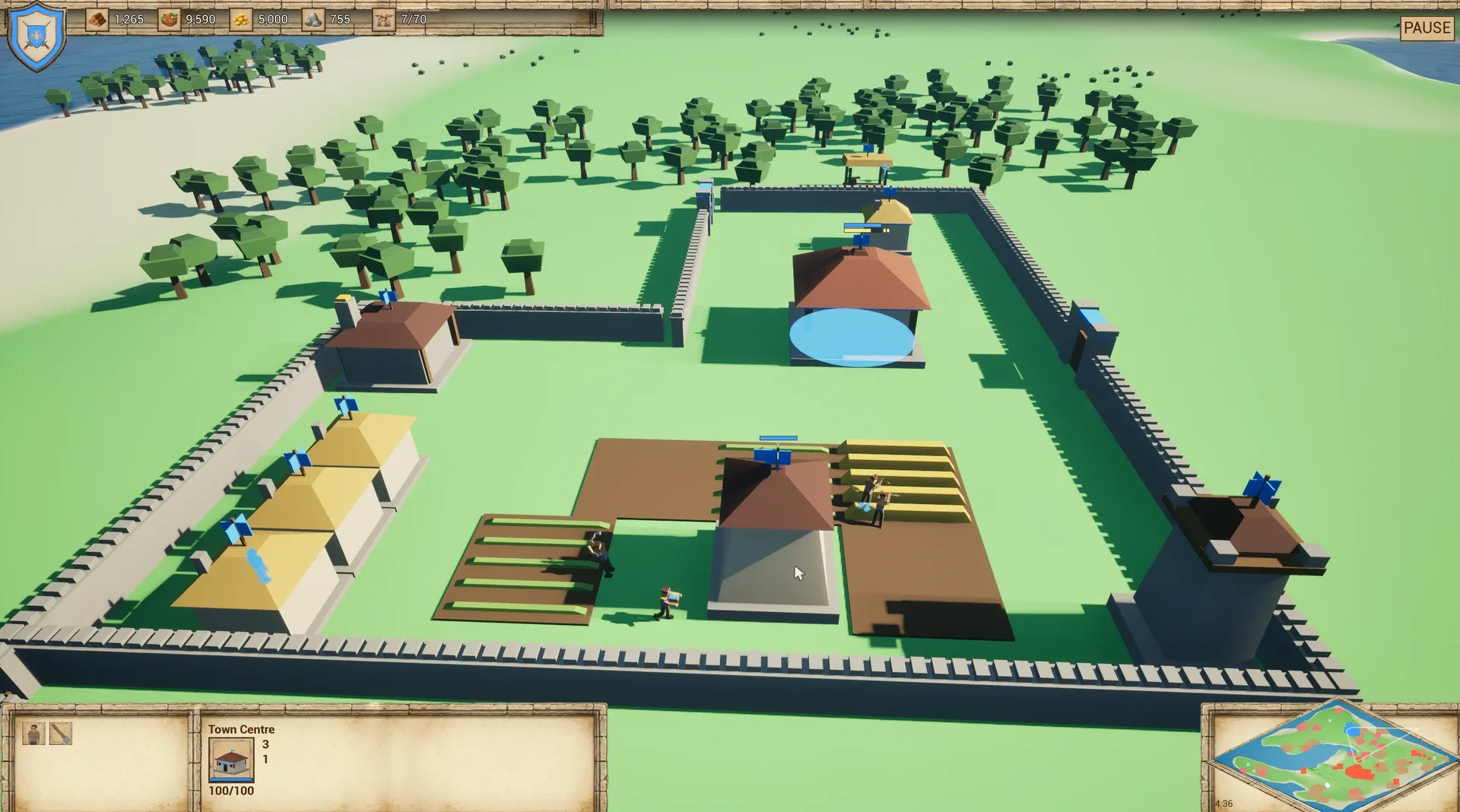

A match on the demo map: a walled village with houses, a mill and farms, the Town Centre and a watch tower, with the HUD and the diamond minimap.

What’s in the box

Plugin modules

Module	Type	Contents
RTSKit	Runtime	Every gameplay system on this page, with full C++ source
RTSKitEditor	Editor	Editor-only additions to the Details panel

Both modules are enabled for Win64, Mac and Linux.

Demo maps

Map	What it is
/RTSKit/Maps/RTSKitDemoMinimal	A fixed map with no terrain dependency
/RTSKit/Maps/RTSKit_WorldGen	The same game on infinite procedural terrain

Blueprints and widgets

Group	Assets
Game framework	BP_RTSKitGameMode, BP_RTSKitGameState, BP_RTSKitPlayerController, BP_RTSKitCameraPawn, BP_RTSKitHUD
Gameplay	BP_RTSKitUnit (every plain unit), BP_RTSKitBuilding (every plain building), BP_RTSKitResourceNode, BP_PlacementGhost

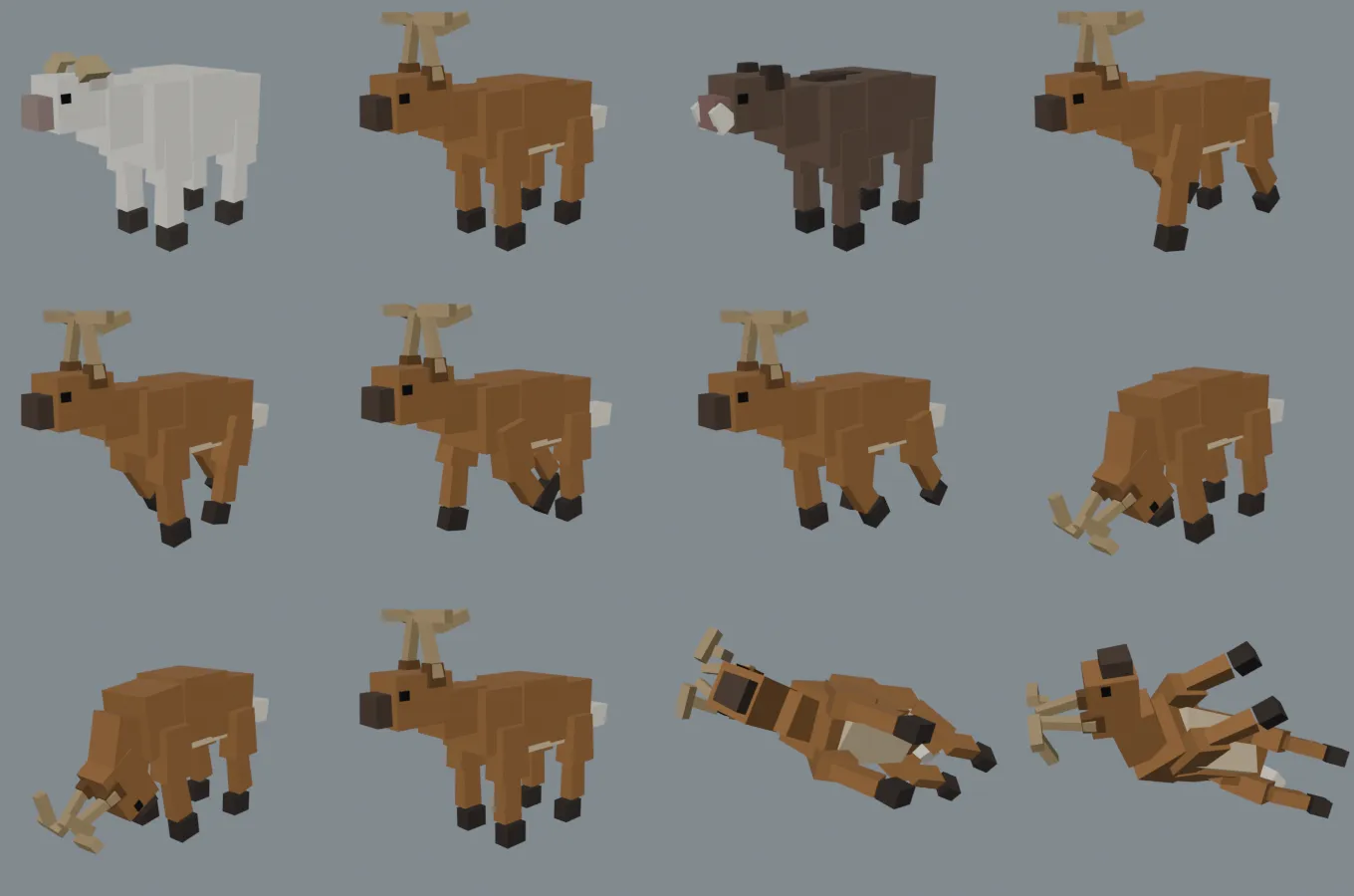

Animation	ABP_Base (characters), ABP_Animal (wildlife)
UI widgets	WBP_HUD, WBP_ActionButton, WBP_ActorDetails, WBP_ResourceCounter, WBP_SelectedActorIcon, WBP_OverheadHealthbar, WBP_Minimap, WBP_AngledMinimap

Data tables

DT_Units, DT_Actions, DT_Resources and DT_Factions, filled with a playable roster. They are described field by field in Data table reference.

Input

The IMC_RTSKit mapping context and its input actions: IA_RTSKitSelect, IA_RTSKitCommand, IA_RTSKitMove, IA_RTSKitZoom, IA_RTSKitOrbit, IA_RTSKitOrbitModifier, IA_RTSKitMiddlePan, IA_RTSKitQuickSave and IA_RTSKitQuickLoad. See Controls.

Art

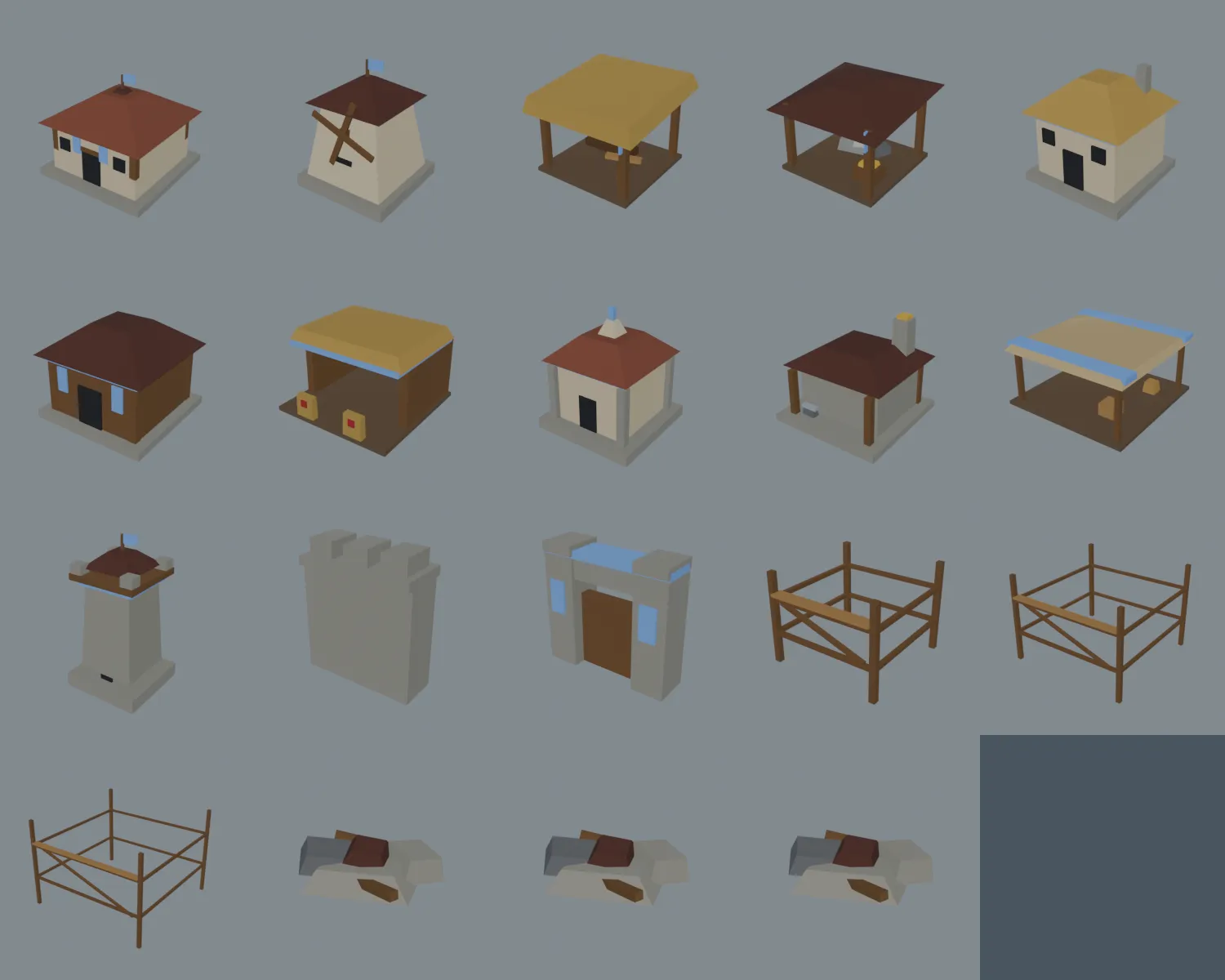

A full low-poly medieval set under /RTSKit/Art: ten gameplay characters and a reference figure, three animals, forty-one props, the buildings with their walls, scaffolds and rubble, UI icons, cursors, and an animation library that plays on every character. See Art set.

Installation

Requirements

• Unreal Engine 5.4.
• Enhanced Input. It ships with the engine and is enabled as a plugin dependency.
• Navigation. RTSKit units use runtime navmesh generation with invokers. Set your project’s navigation to dynamic with invokers enabled, and put a NavMeshBoundsVolume over the play area. The demo project’s DefaultEngine.ini is already set up this way.
• WorldGen is optional. RTSKit runs on any terrain; it simply knows how to cooperate with streaming worlds when one is present.

From Fab

1. Install RTSKit to your engine version from the Epic Games Launcher.
2. Open your project, then Edit > Plugins, search for RTSKit, tick Enabled and restart.
3. A C++ project is not required to use RTSKit, but it is required to compile it from source.

From the project source

1. Copy Plugins/RTSKit into your project’s Plugins folder.
2. Right-click the .uproject and choose Generate Visual Studio project files.
3. Build the editor target.

Navigation setup

Without dynamic navigation, units fall back to straight-line steering. In Project Settings:

• Navigation Mesh: set Runtime Generation to Dynamic.
• Navigation System: enable Generate Navigation Only Around Navigation Invokers.

Then add a NavMeshBoundsVolume to your level that covers the whole play area.

Quick start

1. Open a demo map

/RTSKit/Maps/RTSKitDemoMinimal is a fixed map with no terrain dependency. /RTSKit/Maps/RTSKit_WorldGen is the same game on infinite procedural terrain.

2. Set up your own level

Drop these in:

Actor	Why
BP_RTSKitGameMode (in World Settings)	Spawns factions, hands out slots, spawns AI commanders
ARTSKitMapDefinition	Map size, water line, minimap capture
ARTSKitFactionStart, one per faction	Press Populate to see the village
ARTSKitResourceScatter	Forests, mines, berries
NavMeshBoundsVolume	Covers the play area

The game mode’s FactionTable should point at DT_Factions, and the game state Blueprint carries the other three tables.

3. Press Populate

Select a faction start and press Populate in the Details panel. The village appears in the editor, on the terrain, laid out on the settlement plan. Press it again for a different roll, or set Seed to keep one.

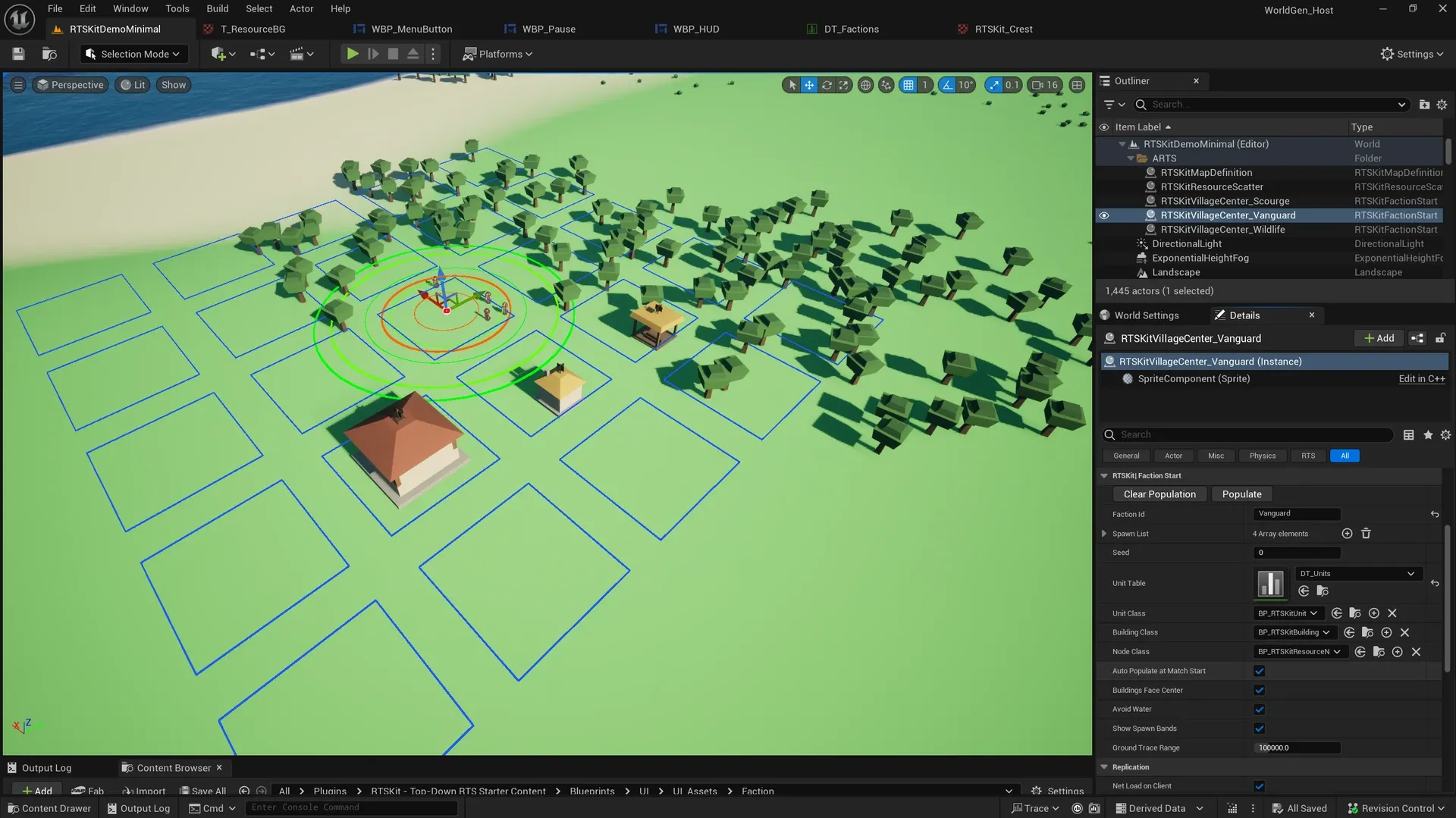

An ARTSKitFactionStart selected in the editor. Populate in the Details panel lays out its village on the settlement plan, whose blocks show as blue outlines.

4. Play

Left-click a villager, then right-click a tree. Open the command card and place a house. The red faction, the AI, does the same thing on its own.

5. Make it yours

Reparent a widget Blueprint to URTSKitHUDWidget and draw your own HUD, or start from WBP_HUD. Copy DT_Units and DT_Actions and edit rows. The recipes walk through the common changes.

Controls

Input	Action
Left-click	Select one entity
Left-drag	Marquee-select your units
Right-click ground	Move
Right-click a resource node	Gather
Right-click your scaffold	Help build
Right-click an enemy	Attack
Right-click with only buildings selected	Set rally point
WASD or screen edges	Pan
Mouse wheel	Zoom (pan speed and pitch follow)
Alt + right-drag	Orbit
Middle-drag	Pan
Shift, while placing	Keep placing
Shift + click a portrait	Narrow the selection to that type
Right-click, while placing	Cancel placement
Delete	Demolish the selection
F5 / F9	Quick save / quick load

All of it is Enhanced Input. Remap it by supplying your own mapping context in place of IMC_RTSKit.

Characters

Ten gameplay characters and one reference figure, all on one skeleton, one palette texture and one animation library: every clip plays on every character. Select a character to see its 3D model, demo stats and notes. In the model, drag to rotate, pick any of the 11 clips, and switch the faction colour between blue and red.

• VillagerTown Centre50 Food

  Villager

  BlueRed

  Villager.glb: 324 triangles, all 11 character clips. Drag to rotate; the buttons recolour the faction material (slot 1).



  T_Icon_Villager_Base

  Demo stat	Villager
  Health	25
  Attack	2
  Armor	0
  Range	Melee
  Speed	124
  Trained at	Town Centre
  Cost	50 Food
  Population	1
  Train time	12 s
  Triangles	324
  Faction-coloured parts	Belt, armbands
  Silhouette	Tunic, bare forearms, hair, armbands

  The worker, trained at the Town Centre. It is the only unit that gathers and builds. It harvests at a gather rate of 1 per second, carries its load with the right tool in hand to the nearest building that accepts that resource, and feeds villager-seconds into construction sites. Right-click a resource node to gather, or your own scaffold to help build. Its work clips are A_Char_ChopWood, A_Char_Mine and A_Char_Farm, and it carries loads home with A_Char_CarryWalk.

• InfantryBarracks60 Food

  Infantry

  BlueRed

  Infantry.glb: 336 triangles, all 11 character clips. Drag to rotate; the buttons recolour the faction material (slot 1).



  T_Icon_Infantry_Base

  Demo stat	Infantry
  Health	45
  Attack	5
  Armor	1
  Range	Melee
  Speed	124
  Trained at	Barracks
  Cost	60 Food
  Population	1
  Train time	21 s
  Triangles	336
  Faction-coloured parts	Belt, pauldrons
  Silhouette	Bulked armour, nasal helm, pauldrons

  The basic melee soldier, trained at the Barracks for Food alone.

• SwordsmanBarracks60 Food, 20 Gold

  Swordsman

  BlueRed

  Swordsman.glb: 336 triangles, all 11 character clips. Drag to rotate; the buttons recolour the faction material (slot 1).



  T_Icon_Swordsman_Base

  Demo stat	Swordsman
  Health	60
  Attack	8
  Armor	2
  Range	Melee
  Speed	124
  Trained at	Barracks
  Cost	60 Food, 20 Gold
  Population	1
  Train time	21 s
  Triangles	336
  Faction-coloured parts	Belt, pauldrons
  Silhouette	Armour, helm, pauldrons

  A heavier melee soldier from the Barracks: more health, attack and armor than the Infantry, and it costs Gold as well as Food.

• SpearmanBarracks35 Food, 25 Wood

  Spearman

  BlueRed

  Spearman.glb: 312 triangles, all 11 character clips. Drag to rotate; the buttons recolour the faction material (slot 1).



  T_Icon_Spearman_Base

  Demo stat	Spearman
  Health	45
  Attack	6
  Armor	1
  Range	Melee
  Speed	124
  Trained at	Barracks
  Cost	35 Food, 25 Wood
  Population	1
  Train time	22 s
  Triangles	312
  Faction-coloured parts	Belt, helmet
  Silhouette	Light armour, nasal helm

  A melee soldier from the Barracks that costs Food and Wood. The animation library includes a thrust, A_Char_Attack2, alongside the slash, A_Char_Attack; which one a unit plays is its AttackAnim in DT_Units.

• ArcherArchery Range25 Wood, 45 Gold

  Archer

  BlueRed

  Archer.glb: 324 triangles, all 11 character clips. Drag to rotate; the buttons recolour the faction material (slot 1).



  T_Icon_Archer_Base

  Demo stat	Archer
  Health	30
  Attack	5
  Armor	0
  Range	600
  Speed	124
  Trained at	Archery Range
  Cost	25 Wood, 45 Gold
  Population	1
  Train time	27 s
  Triangles	324
  Faction-coloured parts	Belt, hood
  Silhouette	Light build, hood, back quiver

  A ranged unit from the Archery Range: it attacks from a Range of 600. Arrows ship as art, but RTSKit 1.0 does not fire projectiles.

• CrossbowmanArchery Range25 Wood, 75 Gold

  Crossbowman

  BlueRed

  Crossbowman.glb: 324 triangles, all 11 character clips. Drag to rotate; the buttons recolour the faction material (slot 1).



  T_Icon_Crossbowman_Base

  Demo stat	Crossbowman
  Health	35
  Attack	7
  Armor	0
  Range	750
  Speed	124
  Trained at	Archery Range
  Cost	25 Wood, 75 Gold
  Population	1
  Train time	27 s
  Triangles	324
  Faction-coloured parts	Belt, hood
  Silhouette	Hood, back quiver

  The longer-ranged unit from the Archery Range, with a Range of 750 and a higher Gold cost than the Archer. Crossbow bolts ship as art; 1.0 does not fire projectiles.

• ScoutNo Train action in the demo

  Scout

  BlueRed

  Scout.glb: 336 triangles, all 11 character clips. Drag to rotate; the buttons recolour the faction material (slot 1).



  T_Icon_Scout_Base

  Demo stat	Scout
  Health	45
  Attack	4
  Armor	0
  Range	Melee
  Speed	186
  Trained at	No Train action in the demo
  Cost	None in the demo
  Population	None in the demo
  Train time	None in the demo
  Triangles	336
  Faction-coloured parts	Belt, armbands, hood
  Silhouette	Light build, hood, armbands

  The fastest character, with a speed of 186. It has full art and a table row, but no Train action in the demo: see Make the Scout, Monk, Priest or Hero trainable. Because the walk cycle is authored for 124, a faster unit needs its walk play rate scaled by the same ratio so its feet don’t skate. See Shared skeleton.

• MonkNo Train action in the demo

  Monk

  BlueRed

  Monk.glb: 348 triangles, all 11 character clips. Drag to rotate; the buttons recolour the faction material (slot 1).



  T_Icon_Monk_Base

  Demo stat	Monk
  Health	30
  Attack	0
  Armor	0
  Range	Melee
  Speed	124
  Trained at	No Train action in the demo
  Cost	None in the demo
  Population	None in the demo
  Train time	None in the demo
  Triangles	348
  Faction-coloured parts	Belt (sash)
  Silhouette	Robe, hood, unarmoured

  Robed and unarmoured, with 0 Attack in the demo table. It has full art and a table row, but no Train action in the demo: see Make the Scout, Monk, Priest or Hero trainable.

• PriestNo Train action in the demo

  Priest

  BlueRed

  Priest.glb: 348 triangles, all 11 character clips. Drag to rotate; the buttons recolour the faction material (slot 1).



  T_Icon_Priest_Base

  Demo stat	Priest
  Health	30
  Attack	0
  Armor	0
  Range	Melee
  Speed	124
  Trained at	No Train action in the demo
  Cost	None in the demo
  Population	None in the demo
  Train time	None in the demo
  Triangles	348
  Faction-coloured parts	Belt (sash), hood
  Silhouette	Full robe over the legs, hood

  A full robe over the legs and a hood, with 0 Attack in the demo table. It has full art and a table row, but no Train action in the demo: see Make the Scout, Monk, Priest or Hero trainable.

• HeroNo Train action in the demo

  Hero

  BlueRed

  Hero.glb: 360 triangles, all 11 character clips. Drag to rotate; the buttons recolour the faction material (slot 1).



  T_Icon_Hero_Base

  Demo stat	Hero
  Health	120
  Attack	12
  Armor	3
  Range	Melee
  Speed	124
  Trained at	No Train action in the demo
  Cost	None in the demo
  Population	None in the demo
  Train time	None in the demo
  Triangles	360
  Faction-coloured parts	Belt, cape, helmet crest
  Silhouette	Heaviest armour, crested helm, pauldrons, cape

  The strongest character in the demo table: 120 health, 12 attack and 3 armor. It has full art and a table row, but no Train action in the demo: see Make the Scout, Monk, Priest or Hero trainable. The Hero is the same height as everyone else; for a physically larger hero, scale its skeletal mesh component uniformly in Unreal, which keeps the shared animations exact.

• BaseReference figure

  Base

  BlueRed

  Base.glb: 300 triangles, all 11 character clips. Drag to rotate; the buttons recolour the faction material (slot 1).

  Art	Base
  Triangles	300
  Faction-coloured parts	Belt
  Silhouette	Plain reference figure

  The plain reference figure. It has no gameplay row: it exists as the neutral reference and as the bind-pose anchor inside the animation files, and your game does not need it. The picture on its tile is taken from the character lineup render, because the art set has no icon for it.

Every trained unit costs 1 population. The Villager is the only unit that gathers and builds. The Scout, Monk, Priest and Hero have full art and a DT_Units row, but no Train action in the demo; each is ready to wire up with one Train action row.

Compare all characters

The demo defaults from DT_Units and DT_Actions; tune them to your game. Range is the attack distance; a unit with no Range stat fights at melee distance.

Unit	Health	Attack	Armor	Range	Speed	Trained at	Cost	Train time
Villager	25	2	0	Melee	124	Town Centre	50 Food	12 s
Infantry	45	5	1	Melee	124	Barracks	60 Food	21 s
Swordsman	60	8	2	Melee	124	Barracks	60 Food, 20 Gold	21 s
Spearman	45	6	1	Melee	124	Barracks	35 Food, 25 Wood	22 s
Archer	30	5	0	600	124	Archery Range	25 Wood, 45 Gold	27 s
Crossbowman	35	7	0	750	124	Archery Range	25 Wood, 75 Gold	27 s
Scout	45	4	0	Melee	186	No Train action in the demo
Monk	30	0	0	Melee	124	No Train action in the demo
Priest	30	0	0	Melee	124	No Train action in the demo
Hero	120	12	3	Melee	124	No Train action in the demo

Wildlife

Three wild animals on their own shared quadruped skeleton. They belong to the neutral Wildlife faction. Values are the demo defaults.

Animal	Health	Attack	Speed
Deer	15		150
Boar	40	6	130
Sheep	10		90

The three animals share one 20-bone skeleton, so their size comes from scaling the skeletal mesh component uniformly, which keeps the shared clips exact. The art set is authored for a sheep at 0.85, a deer at 1.20 and a boar at 0.95. Wildlife meshes have a single material slot and no faction colour, because wildlife has no owner.

•

  DeerT_Icon_Deer_Base

•

  BoarT_Icon_Boar_Base

•

  SheepT_Icon_Sheep_Base

The sheep, deer and boar.

The animal sheet: all three animals, then the deer through its clips.

Animal clips

Clip	Frames	Loops
A_Animal_Idle	100	Yes
A_Animal_Walk	32	Yes
A_Animal_Graze	90	Yes
A_Animal_Die	40	No

All four clips play on all three animals.

Hunting and corpses

A unit’s row can name a resource node to leave where it dies, with CorpseNodeId. The corpse lingers as the visual while the node under it holds the stock, so a hunted animal can become a Food source. To use it, set CorpseNodeId on the animal’s row to a resource row.

Factions

Factions are rows in DT_Factions: display name, colours, icon, controller type, starting resources, starting population cap and faction tags. The demo ships three.

Faction	Controller	Wood	Food	Gold	Stone	Population cap
Vanguard	Human	3000	5000	5000	1500	10
Scourge	AI	400	250	700	200	15
Wildlife	Neutral

Vanguard’s starting stockpile is deliberately generous, for testing. In the demo the AI faction plays red.

Who is allied with whom is not part of a faction: it is a property of the match, so it lives on the game mode. See Factions and diplomacy.

Resources and nodes

Resources

The demo has four resources, defined in DT_Resources. Each row sets the display name, icon, colour, HUD sort order and visibility, and how gathering it looks: the cursor, the carried load, the tool in hand and the looping work animation.

Resource	Gathered from	Tool in hand	Cursor	Dropped off at
Wood	Trees	Axe	Axe	Lumber Camp, Town Centre
Food	Berry bushes, farms	Sickle and hoe	Sickle	Mill, Town Centre
Gold	Gold mines	Pickaxe	Pickaxe	Mining Camp, Town Centre
Stone	Stone mines	Pickaxe	Hammer	Mining Camp, Town Centre

Resource nodes

Nodes are DT_Units rows with Kind set to Resource. Their stock is finite, and a node can show a different mesh at each stock stage.

Node	Resource	Starting stock	Icon rendered from
Tree	Wood	150	SM_Tree_Oak_L
Berry Bush	Food	150	SM_Bush_Berry
Gold Mine	Gold	800	SM_Node_Gold_L
Stone Mine	Stone	350	SM_Node_Stone_L
Farm	Food	175	SM_Farm_03

•

  TreeT_Icon_Tree_Base

•

  Berry BushT_Icon_BerryBush_Base

•

  Gold MineT_Icon_GoldMine_Base

•

  Stone MineT_Icon_StoneMine_Base

•

  FarmT_Icon_Farm_Base

When a node runs dry, its gatherers look for another node of the same resource nearby. See Gathering.

Farms

A farm is a Food node that villagers build for 60 Wood, with no build time. It holds 175 Food and grows through four stages, from bare soil (SM_Farm_00) to a ripe field (SM_Farm_03). The farm mesh is a flat 3 m tile, and MeshScale on the row sizes the field without re-exporting the art: 2, 2, 1 turns it into a 6 m field of 3 × 3 grid cells.

Farms can auto-replant: with bAutoReplant on, a farm refills on its last handful, charges ReplantCost to the faction harvesting it, and its stage meshes snap back to the start. If the faction can’t pay, the farm depletes normally.

Buildings

Select a building to see its demo stats, footprint and notes. Build time is in villager-seconds: one villager takes that many seconds, and two builders halve it. Footprint is the grid module the mesh fills, in whole metres, including roof overhang.

• Town Centre275 Wood, 100 Stone

  Town Centre



  T_Icon_TownCenter_Base

  Demo value	Town Centre
  Cost	275 Wood, 100 Stone
  Build time	40 villager-seconds
  Health	600
  Armor	5
  Population	+5
  Role	Trains Villagers, accepts all resources
  Footprint	8 m
  Mesh	SM_Bld_TownCenter

  The heart of a settlement. It trains Villagers, accepts every resource as a drop-off and raises the population cap by 5. The mesh has a plinth, a timber frame, banners and a roof flag, and is 800 cm across.

• House30 Wood

  House

  Demo value	House
  Cost	30 Wood
  Build time	10 villager-seconds
  Health	300
  Armor	None
  Population	+5
  Role	Population
  Footprint	4 m
  Mesh	SM_Bld_House

  Raises the population cap by 5. The mesh is 390 cm across, inside a 4 m module. The AI raises houses whenever its population headroom runs short. Its command-card icon ships in the plugin as T_HouseIcon and T_HouseIconMask under Blueprints/UI/UI_Assets, outside the art set’s icon folder; the picture on its tile is taken from the building render sheet.

• Mill100 Wood

  Mill



  T_Icon_Mill_Base

  Demo value	Mill
  Cost	100 Wood
  Build time	15 villager-seconds
  Health	350
  Armor	5
  Population	None
  Role	Accepts Food
  Footprint	5 m
  Mesh	SM_Bld_Mill

  The Food drop-off. It is a windmill, the one silhouette that is unmistakable from overhead.

• Lumber Camp100 Wood

  Lumber Camp



  T_Icon_LumberCamp_Base

  Demo value	Lumber Camp
  Cost	100 Wood
  Build time	15 villager-seconds
  Health	300
  Armor	5
  Population	None
  Role	Accepts Wood
  Footprint	5 m
  Mesh	SM_Bld_LumberCamp

  The Wood drop-off: an open shelter with a flat thatch roof, a log pile and a sawhorse. It sits on a 4 m shelter but claims 5 m, because the eaves would collide if two were placed side by side.

• Mining Camp100 Wood

  Mining Camp



  T_Icon_MiningCamp_Base

  Demo value	Mining Camp
  Cost	100 Wood
  Build time	15 villager-seconds
  Health	300
  Armor	5
  Population	None
  Role	Accepts Gold and Stone
  Footprint	5 m
  Mesh	SM_Bld_MiningCamp

  The drop-off for Gold and Stone: the same frame as the Lumber Camp with a pitched dark roof and ore and stone piles.

• Barracks150 Wood

  Barracks



  T_Icon_Barracks_Base

  Demo value	Barracks
  Cost	150 Wood
  Build time	25 villager-seconds
  Health	800
  Armor	None
  Population	None
  Role	Trains Infantry, Swordsman, Spearman
  Footprint	6 m
  Mesh	SM_Bld_Barracks

  Trains Infantry, Swordsmen and Spearmen.

• Archery Range150 Wood

  Archery Range



  T_Icon_ArcheryRange_Base

  Demo value	Archery Range
  Cost	150 Wood
  Build time	25 villager-seconds
  Health	800
  Armor	None
  Population	None
  Role	Trains Archer, Crossbowman
  Footprint	6 m
  Mesh	SM_Bld_ArcheryRange

  Trains Archers and Crossbowmen.

• Blacksmith100 Wood, 50 Stone

  Blacksmith



  T_Icon_Blacksmith_Base

  Demo value	Blacksmith
  Cost	100 Wood, 50 Stone
  Build time	20 villager-seconds
  Health	600
  Armor	None
  Population	None
  Role	No function yet: upgrades are not in 1.0
  Footprint	6 m
  Mesh	SM_Bld_Blacksmith

  Can be built, but has no function in 1.0, because upgrades are not in 1.0. The hooks for tech gating exist (RequiredFactionTags on actions, faction tags on factions), but the research system does not.

• Watch Tower25 Wood, 75 Stone

  Watch Tower



  T_Icon_WatchTower_Base

  Demo value	Watch Tower
  Cost	25 Wood, 75 Stone
  Build time	20 villager-seconds
  Health	700
  Armor	None
  Population	None
  Role	Defensive structure
  Footprint	4 m
  Mesh	SM_Bld_WatchTower

  A defensive structure. The AI places watch towers at the gates and corners of its wall ring.

• Wall5 Stone

  Wall



  T_Icon_Wall_Base

  Demo value	Wall
  Cost	5 Stone
  Build time	4 villager-seconds
  Health	500
  Armor	None
  Population	None
  Role	Dragged as a line; autotiles straight, corner, T, cross and end pieces
  Footprint	2 m per piece
  Mesh	SM_Wall_*

  Dragged as a line: the first click anchors the run and the second commits it. Each 2 m piece is priced and placed on its own, and picks a straight, corner, T, cross or end mesh from its neighbours. See Walls, gates, scaffolds and rubble.

• Wall Gate30 Stone

  Wall Gate



  T_Icon_WallGate_Base

  Demo value	Wall Gate
  Cost	30 Stone
  Build time	10 villager-seconds
  Health	600
  Armor	None
  Population	None
  Role	Placed onto a wall; opens for friendly units
  Footprint	4 m
  Mesh	SM_Wall_Gate

  Placed onto an existing wall line, where it claims the pieces under it. It opens for friendly and allied units. See Gates.

• Farm60 Wood

  Farm



  T_Icon_Farm_Base

  Demo value	Farm
  Cost	60 Wood
  Build time	Instant
  Health	None
  Armor	None
  Population	None
  Role	Food node: 175 Food, grows through 4 stages, can auto-replant
  Footprint	3 m tile, sized by MeshScale
  Mesh	SM_Farm_00 to 03

  A Food node that villagers build instantly. See Farms.

• MarketArt only

  Market

  Art	Market
  Gameplay row	None: art only
  Footprint	6 m
  Mesh	SM_Bld_Market

  Ships as art only, with no gameplay row. The Market’s awning stripes carry the faction colour. To use it, give it a DT_Units row and a Build action: see Add a building. The picture on its tile is taken from the building render sheet.

• TempleArt only

  Temple

  Art	Temple
  Gameplay row	None: art only
  Footprint	6 m
  Mesh	SM_Bld_Temple

  Ships as art only, with no gameplay row. To use it, give it a DT_Units row and a Build action: see Add a building. The picture on its tile is taken from the building render sheet.

Compare all buildings

The demo defaults from DT_Units and DT_Actions. The Market and Temple have no gameplay row, so they aren’t listed.

Building	Cost	Build time	Health	Armor	Population	Role
Town Centre	275 Wood, 100 Stone	40	600	5	+5	Trains Villagers, accepts all resources
House	30 Wood	10	300		+5	Population
Mill	100 Wood	15	350	5		Accepts Food
Lumber Camp	100 Wood	15	300	5		Accepts Wood
Mining Camp	100 Wood	15	300	5		Accepts Gold and Stone
Barracks	150 Wood	25	800			Trains Infantry, Swordsman, Spearman
Archery Range	150 Wood	25	800			Trains Archer, Crossbowman
Blacksmith	100 Wood, 50 Stone	20	600			No function yet
Watch Tower	25 Wood, 75 Stone	20	700			Defensive structure
Wall	5 Stone per piece	4	500			Dragged as a line, autotiles
Wall Gate	30 Stone	10	600			Placed onto a wall, opens for friendly units
Farm	60 Wood	Instant				Food node, 175 Food

The building set: eleven buildings, a straight wall piece, the gate, and the small, medium and large scaffolds and rubble.

Where the footprint fits, the ghost is green.

Over the farm field it turns orange, and the building can’t be placed there.

The ghost tints by validity, and a green ghost is never refused by the server.

Walls, gates, scaffolds and rubble

Wall pieces

A wall row carries a mesh for each adjacency pattern in WallVariants, and each piece picks its own mesh and rotation from its neighbours. WallVariantsFoundation is the same set again for the under-construction state, so a half-built wall corners correctly too.

Piece	Mesh	Under construction
Straight	SM_Wall_Straight	SM_Wall_Straight_Foundation
Corner	SM_Wall_Corner	SM_Wall_Corner_Foundation
T	SM_Wall_T	SM_Wall_T_Foundation
Cross	SM_Wall_Cross	SM_Wall_Cross_Foundation
End	SM_Wall_End	SM_Wall_End_Foundation

Every piece is a 2 m module, so pieces tile flush on the 200 cm grid. Walls have no faction-coloured parts and no roof flag: a pennant every 2 m along a run would be absurd.

A new wall run dragged out from the village wall, still at the under-construction foundation stage. The finished ring behind it shows full-height straight, corner and gate pieces.

Gates

A gate is any building row with a GateOpenRadius. It snaps onto an existing wall line and replaces the pieces under it. A gate row’s GateOpenMesh is what it shows while open. The art set has the shut gate, SM_Wall_Gate, and an open version, SM_Wall_Gate_Open. The gate is a 4 m module.

Scaffolds

SM_Scaffold_S, SM_Scaffold_M and SM_Scaffold_L (4, 6 and 8 m) are shared by every building under construction, instead of a bespoke state per building. Pick one by footprint: a 5 m building uses the 6 m set. Scaffolds fly a roof flag too, so a site under construction reads as yours.

Rubble

SM_Rubble_S, SM_Rubble_M and SM_Rubble_L (4, 6 and 8 m) are the shared destroyed state, set per building with RubbleMesh. Rubble has no owner, so it flies no flag.

Roof flags

Every owned building flies a pole flag above its roofline, plus a band under the eaves and banners on the facade. The flag is the one that matters: from an RTS camera you look at the roof, so a wall banner is invisible from directly overhead and a band under the eaves is hidden by the overhang.

• The pennant is two panels crossed at 90°. A single flat banner goes edge-on and disappears at some camera angles; crossed, at least one panel always shows.
• The pole starts at each building’s measured roofline, so the ridge never swallows it.

Roof flags on ten buildings. Each pennant is two crossed panels, so it reads from any camera angle.

Tools, weapons and props

Forty-one static props, 1,884 triangles for the whole set, all on the shared palette texture.

Group	Meshes	Contents
Trees	8	Pine, oak and dead at two sizes, plus two stumps
Food	6	Berry bush ripe and picked, four farm growth stages
Ore	6	Gold and stone outcrops: large, small and spent
Tools	6	Axe, pickaxe, hoe, sickle, hammer, fishing rod
Weapons	6	Sword, spear, staff, bow, crossbow, banner
Shields	2	Round, kite
Carry loads	4	Wood, gold, stone, food
Projectiles	3	Arrow, bolt, javelin

World props, the six tools and the four carry loads. Weapons, shields and projectiles are not on this sheet.

Tools

Villagers hold a tool while they work: the axe for wood, the pickaxe for gold and stone, the sickle and hoe for food, and the hammer for construction. The tool for each resource comes from its DT_Resources row, and the construction tool from the unit’s BuildToolMesh. The fishing rod ships as art only: 1.0 has no fishing.

Hand props are authored around the grip: the origin is at the grip, the handle runs along +X, and the business end is at far +X. Unreal’s forward is +X, so a tool attached to the weapon_r bone points where the unit faces.

Weapons, shields and projectiles

The sword, spear, staff, bow, crossbow and banner, the round and kite shields, and the arrow, bolt and javelin all ship as art. Units show a weapon through WeaponMesh in their row. RTSKit 1.0 does not fire projectiles, so the arrow, bolt and javelin are included art rather than a feature.

The bow is the one exception to +X: it is held across the body, so its limbs run along Z. Projectiles point along +X. The two shields and the banner carry a faction-coloured slot like the characters; every other prop has one slot.

Carry loads

SM_Load_Wood, SM_Load_Food, SM_Load_Gold and SM_Load_Stone are the loads a villager carries home. The carry mesh for each resource comes from its DT_Resources row.

World props

World props sit on z = 0 with the origin at the centre of the base, so they drop straight onto terrain. The trees, bushes, outcrops and farm plots include the stage meshes a node can switch between as its stock runs down.

Cursors

Six 64×64 cursors, each rendered from the tool that does the job, so the cursor and the tool in the villager’s hand are the same object.

Cursor	Shown	Engine cursor slot	Rendered from
T_Cursor_Axe	Over a tree (Wood)	Crosshairs	SM_Tool_Axe
T_Cursor_Pickaxe	Over a gold mine (Gold)	GrabHand	SM_Tool_Pickaxe
T_Cursor_Hammer	Over a stone mine (Stone), and over your own construction site with a worker selected	GrabHandClosed	SM_Tool_Hammer
T_Cursor_Sickle	Over a berry bush (Food)	Hand	SM_Tool_Sickle
T_Cursor_Sword	Over a hostile unit or building	SlashedCircle	SM_Weapon_Sword
T_Cursor_Pointer	Everywhere else	Default	Drawn, no mesh

•

  AxeT_Cursor_Axe

•

  PickaxeT_Cursor_Pickaxe

•

  HammerT_Cursor_Hammer

•

  SickleT_Cursor_Sickle

•

  SwordT_Cursor_Sword

•

  PointerT_Cursor_Pointer

The resource cursors come from each resource’s DT_Resources row. The player controller registers the cursors at runtime onto the engine’s cursor slots, so you don’t need to author a widget per cursor in Project Settings. The construction cursor reuses Stone’s hammer slot by default. Each cursor’s tip sits in the top-left corner, where the hotspot is, and a 2 px dark navy outline keeps it readable over both bright grass and dark water.

The cursors over grass, water and a pale panel.

The axe, pickaxe and hammer are all a grey head on a brown stick, so at small sizes the three gathering cursors read alike. Their silhouettes differ (wedge, crossbar, block), but not by much at 32×32.

Art set

A full low-poly medieval set: characters, wildlife, buildings, props, icons and cursors, all sharing one texture, one material set, one skeleton per body plan and one animation library. It lives under /RTSKit/Art.

Triangle budget

Family	Meshes	Triangles
Characters	11 (10 gameplay types plus Base)	3,648
Wildlife	3	1,008
Props	41	1,884
Buildings	19	2,916
Total		9,456

These figures come from the art README, which counts nineteen building meshes: the eleven buildings, the straight wall piece, the gate, and the three scaffolds and three rubble piles. The plugin also ships the wall corner, T, cross and end pieces, the under-construction wall pieces and the open gate, which that count doesn’t list.

Character	Triangles	Silhouette	Faction-coloured parts
Base	300	Plain reference figure	Belt
Villager	324	Tunic, bare forearms, hair, armbands	Belt, armbands
Infantry	336	Bulked armour, nasal helm, pauldrons	Belt, pauldrons
Swordsman	336	Armour, helm, pauldrons	Belt, pauldrons
Spearman	312	Light armour, nasal helm	Belt, helmet
Archer	324	Light build, hood, back quiver	Belt, hood
Crossbowman	324	Hood, back quiver	Belt, hood
Scout	336	Light build, hood, armbands	Belt, armbands, hood
Monk	348	Robe, hood, unarmoured	Belt (sash)
Priest	348	Full robe over the legs, hood	Belt (sash), hood
Hero	360	Heaviest armour, crested helm, pauldrons, cape	Belt, cape, helmet crest

The full roster, from the Base figure on the left to the Monk on the right. Open it full size to compare silhouettes.

The Base figure beside the Villager, Infantry, Archer, Priest and Hero.

Shared skeleton

All eleven characters share one skeleton, so every animation plays on every type.

• 25 bones, 1.705 m tall (170 Unreal units), animated at 30 fps.
• Bone names follow the UE5 mannequin (pelvis, spine_01, thigh_l, clavicle_r and so on), so an IK Retargeter can map the chains. The proportions are stylised, so retargeted mocap needs scaling: this buys chain mapping, not a drop-in match.
• Attachment bones: weapon_l and weapon_r are non-deforming bones in the palms, pointing forward, and back carries the quiver, cape and carry loads. Attach props straight to those bones; no sockets are needed, though you can add sockets on top for finer placement.
• In place: the root bone stays at the origin, so the clips carry no root motion. The bob and weight shift ride on pelvis.
• Walk speed: the planted foot travels at 124 cm/s, the demo’s unit speed, and the top of the walk blendspace axis. Set a unit’s walk speed to match or the feet skate. For a faster unit, scale the play rate by the same ratio rather than lengthening the stride.
• One height: every type, the Hero included, is the same height. For a bigger unit, scale its skeletal mesh component uniformly.
• Facing: characters face +X in Unreal.

The animals use a separate shared skeleton of 20 bones, on the same terms. See Wildlife.

Palette and materials

Every character, building, prop and animal samples one 512×512 palette texture, T_Palette, through the same slot-0 material, so an infantryman and a priest merge into the same draw call. Each type owns a row of swatches on a 32×32 grid, so there is plenty of room left for new types.

T_Palette uses Nearest filtering and no mipmaps. Filtered or mipped, neighbouring swatches average together and everything turns into the same grey-brown smear at distance.

Faction colour

Characters, buildings and the faction-coloured props have two material slots, in the same order on every mesh, so one material setup covers the whole roster:

Slot	Material	Contents
0	M_Palette	Everything else, through the shared palette texture
1	M_Faction	The faction pieces: flat, untextured, recoloured at runtime

Give slot 1 a material with a FactionColor vector parameter driving Base Color, and set it per unit. Slot 0 is untouched, so it keeps batching across the whole army. The simplest way is one dynamic material instance per unit:

auto* MID = Mesh->CreateDynamicMaterialInstance(1, FactionMaterial);
MID->SetVectorParameterValue(TEXT("FactionColor"), FactionColour);

With hundreds of units on screen, a unique instance per unit costs draw-call merging. Custom Primitive Data avoids that: every unit shares one material instance and carries its own colour on the component.

Mesh->SetCustomPrimitiveDataVector4(0, FactionColour); // the material reads Custom Primitive Data [0]

The Custom Primitive Data route needs the parameter marked for it on the material; the dynamic material route works with any vector parameter. Leave slot 0 alone either way.

Which parts are faction-coloured is chosen per type to stay visible from a top-down camera: shoulders and heads read, while a belt alone is a few pixels at RTS zoom. The parts are listed in the triangle budget table.

The same five characters with only slot 1’s colour changed.

The UI icons use the same idea. Each icon is a Base image plus a Mask that marks its faction-coloured part in white, and the plugin’s tinted icon material blends them:

lerp(BaseTexture.RGB, FactionColor, FactionMask.RGB * FactionMask.A)

with the Base image’s alpha driving the opacity mask. Try it here: pick a colour, or show the masks.

BlueRedAny colour

Show the masks

•

  Villager

•

  Infantry

•

  Archer

•

  Priest

•

  Hero

•

  Scout

•

  Town Centre

•

  Barracks

•

  Mill

•

  Wall Gate

•

  Wall

•

  Tree

The Wall and the Tree don’t change colour: a wall piece has no faction parts and a tree has no owner, so their masks are fully black and the blend leaves the Base image as it is.

Animation library

Eleven character clips at 30 fps. All of them play on every character, in place.

Clip	Frames	Length	Loops	Ground contact
A_Char_Idle	120	4 s	Yes	Feet
A_Char_Walk	24	0.8 s	Yes	Feet
A_Char_CarryWalk	24	0.8 s	Yes	Feet
A_Char_Farm	48	1.6 s	Yes	Feet
A_Char_Mine	36	1.2 s	Yes	Feet
A_Char_ChopWood	40	1.33 s	Yes	Feet
A_Char_Attack	30	1 s	Yes	Feet
A_Char_Attack2	30	1 s	Yes	Feet
A_Char_HitReact	18	0.6 s	No	Feet
A_Char_Cheer	48	1.6 s	Yes	Feet
A_Char_Die	45	1.5 s	No	Whole body

• A_Char_Attack is a slash (swords, generic melee) and A_Char_Attack2 is a thrust (spears).
• A_Char_CarryWalk shares the walk’s stride exactly, so it swaps in on the return leg of a gather trip without a speed change.
• Most clips are planted on the boots, which are identical on every type. A_Char_Die is planted against every character’s whole body, so the Hero’s cape and the Priest’s robe don’t sink into the ground; the types without them float a few centimetres at the end of the fall, about two pixels at RTS zoom.
• Working clips use a square stance, both legs identical, so both boots sit at the same height and plant together.

A_Char_Walk on five character types. The stride is identical, so they stay in step.

A_Char_Attack

A_Char_ChopWood

A_Char_Mine

A_Char_Farm

A_Char_Die

The Villager through five clips, six frames each. The bottom row is A_Char_Die.

The four animal clips are listed under Wildlife.

UI icons

T_Icon_<Name>_Base and T_Icon_<Name>_Mask pairs, 256×256 with transparent backgrounds: the ten units, ten buildings (Town Centre, Mill, Lumber Camp, Mining Camp, Barracks, Archery Range, Blacksmith, Watch Tower, Wall and Wall Gate), the five resource nodes, the three animals, and Demolish. Characters are framed as upper-body portraits, since a full-length figure at icon size is mostly boots. Buildings are framed whole, at a low angle so the two open-sided camps don’t read as the same roof. Resource node icons are named for their row ID (Tree, GoldMine, StoneMine, BerryBush, Farm), the same key the data table uses.

•

  VillagerT_Icon_Villager_Base

•

  InfantryT_Icon_Infantry_Base

•

  SwordsmanT_Icon_Swordsman_Base

•

  SpearmanT_Icon_Spearman_Base

•

  ArcherT_Icon_Archer_Base

•

  CrossbowmanT_Icon_Crossbowman_Base

•

  ScoutT_Icon_Scout_Base

•

  MonkT_Icon_Monk_Base

•

  PriestT_Icon_Priest_Base

•

  HeroT_Icon_Hero_Base

•

  Town CentreT_Icon_TownCenter_Base

•

  MillT_Icon_Mill_Base

•

  Lumber CampT_Icon_LumberCamp_Base

•

  Mining CampT_Icon_MiningCamp_Base

•

  BarracksT_Icon_Barracks_Base

•

  Archery RangeT_Icon_ArcheryRange_Base

•

  BlacksmithT_Icon_Blacksmith_Base

•

  Watch TowerT_Icon_WatchTower_Base

•

  WallT_Icon_Wall_Base

•

  Wall GateT_Icon_WallGate_Base

•

  DemolishT_Icon_Demolish_Base

Base images (top) and their masks (bottom). White in the mask is where the faction colour goes.

The House uses T_HouseIcon and T_HouseIconMask from Blueprints/UI/UI_Assets instead. The Market and Temple, which have no gameplay row, have no icons.

Systems

RTS camera

ARTSKitCameraPawn is a spring-arm camera. WASD and the screen edges pan it, with an easing ramp across the edge band. The mouse wheel zooms, pan speed scales with zoom, and the camera pitches toward overhead as you zoom out. Zoom heads toward the point under the cursor. Alt + right-drag orbits and middle-drag pans, and the pivot stays clamped to the ground. The camera can switch between perspective and orthographic at runtime (the RTSKitToggleProjection console command does it) for a classic isometric look, and a match opens on your own faction’s start marker.

Selection

Click to select one entity, or drag a marquee over your units. Click a portrait to narrow the selection to one, or Shift-click it to narrow to that type. Enemy buildings can be selected for inspection, but show no action cards. The marquee and the hover health bars are drawn by ARTSKitHUD on the HUD canvas.

Selection never crosses the network: it is local to each player. Only orders are sent.

Commands and authority

Every order starts as a call on IRTSKitCommander:

IssueMoveCommand      IssueGatherCommand    IssueBuildCommand
IssueConstructCommand IssueTrainCommand     IssueAttackCommand
IssueRallyCommand

ARTSKitPlayerController implements them by sending a server RPC. ARTSKitAICommander implements them by calling straight through, because it already runs on the server. Both end in URTSKitCommandLibrary::Execute*Command, which re-checks ownership, entitlement, price, population and placement, and silently drops anything the caller does not own.

Placement grid

CheckPlacement is shared by the ghost and the server:

1. Snap to the placement grid. Footprint cells come from the mesh bounds times MeshScale, so the art defines the footprint. Odd footprints centre on a cell, even ones on a corner.
2. Trace for ground, skipping RTSKit’s own actors so a gate can be placed against a wall.
3. Reject slopes over the row’s MaxPlacementSlope.
4. Box-overlap the footprint against buildings, units and nodes.
5. An optional clearance ring in whole cells, used by the AI.

Because the preview and the decision run the same function, a green ghost is never refused by the server. The grid size is set on the game state; 200 cm matches the shipped meshes.

Walls and gates

A bLinePlacement action drags a run: the first click anchors, the second commits. Runs snap to the world axes and the shared grid, which is what lets two runs meet without a gap. Every segment is validated and charged on its own, so a run that crosses a rock, or outruns your stockpile, simply gains a hole. Hold Shift to keep placing.

Each piece picks its own mesh and rotation from its neighbours: straight, corner, T, cross or end. Placing or destroying a piece re-forms the pieces beside it, so knocking a hole in a wall leaves the survivors correctly capped.

A gate snaps onto an existing wall line and claims the pieces under it. While a friendly or allied unit is near, it stops blocking pawns. Enemies plan through the gateway and bump into the shut doors, which is where a siege starts. The navmesh always sees the gateway as open, so paths route through it.

Gathering

SetGatherTarget runs a loop on the server: walk to a spot on the node’s gather ring, harvest at GatherRate until GatherCapacity is full, carry the load to the nearest building whose row accepts that resource, deposit, and return. The carry mesh, the tool and the work animation all come from the resource’s row, so the cursor, the prop and the animation tell the same story.

When a node runs dry, the unit finds another of the same resource within NodeSearchRadius. Farms with bAutoReplant refill on the last handful, charging ReplantCost to the harvesting faction, and their stage meshes snap back; if the faction can’t pay, the node depletes normally.

Villagers farming around the Mill. The Town Centre is selected, so the selection panel and command card show it.

Construction

A build spawns a scaffold, and the villagers who placed it walk over and feed it villager-seconds. Two builders halve the time. A builder that finishes rolls on to the nearest unfinished site. Right-clicking a friendly scaffold adds more hands. Builders hold the hammer while they work.

A building going up on its scaffold at the forest edge. The scaffold already flies its owner’s flag.

Training, population and rally

A producer holds a queue of Train actions. The cost is paid when the unit is queued; a unit blocked by the population cap waits at the door rather than being refunded. Progress is computed from two replicated timestamps, so a client’s progress bar costs no extra network traffic.

Buildings with PopulationProvided raise their owner’s cap, and each Train action costs its PopulationCost. With no rally point set, trainees gather on the nearest open ground beside the building, and step out on the side facing where they are going. Right-click the ground with only buildings selected to set a rally point.

Combat and stats

Each entity carries a URTSKitStatsComponent with live, free-form stats: Health, Attack, Armor, Range and Speed in the demo, or whatever your game uses. The stats come from the Stats map on the row.

Right-click an enemy to attack. Idle units engage enemies inside their AggroRadius. Damage lands in ticks, AttackInterval seconds apart, and each tick does the attacker’s Attack minus the target’s Armor, never less than 1. The attack clip is sped up or slowed so one swing spans one interval. Range is the attack distance; units without one fight at melee distance. Units play their AttackAnim and DeathAnim, can show a WeaponMesh and an AttackToolMesh, and leave a corpse that lingers a few seconds. Buildings take damage, leave their RubbleMesh and hand back the population they provided.

Movement and the stuck watchdog

Units are Pawns with direct steering and a downward ground trace, not Characters. In an RTS every unit is a simulated proxy on every client, so the character movement component’s prediction machinery would be pure overhead.

• Goals route through the navmesh and walk the corridor; short hops and maps without a navmesh fall back to straight-line steering.
• A blocked step slides along the obstacle and replans, so units shed around buildings.
• Water is a wall to walkers: a step into the sea becomes a walk along the shore.
• A stuck watchdog notices a unit that is trying to move but going nowhere, and recovers it in steps: replan to the nearest reachable point, walk out to open navmesh, snap back onto the navmesh, and finally drop the order. It is the difference between a demo you can leave running and one you cannot.
• Faction-coloured silhouettes draw through anything standing in front of a unit.

Groups move with simple spacing: there are no formations in 1.0.

Minimap

ARTSKitMapDefinition owns a top-down scene capture and hands out the render target. A fixed map is photographed once; a streaming map is re-photographed periodically so new chunks appear, and an infinite map’s window rides the camera. Water is captured as a flat colour, because translucent water photographs as glass.

URTSKitMinimapWidget paints the blips directly (no widget per actor), draws the camera frustum, jumps the camera on click and orders the selection on right-click. URTSKitMinimapAngledWidget is the same map drawn as a 2:1 diamond. The demo widgets are WBP_Minimap and WBP_AngledMinimap.

The diamond minimap from the demo HUD, with the camera’s view outlined in white and the match clock in its corner.

The AI commander

One ARTSKitAICommander per AI faction, thinking every DecisionInterval seconds. It runs only on the server and issues orders through the same IRTSKitCommander interface as the player, so it cannot cheat.

Economy. Villagers are split between resources by weight, and the weights follow the stockpile: a resource banked above StockpileComfort has its share shrink in proportion, and one working villager per pass moves from the most over-staffed resource to the most short-handed one. Nodes are chosen by how far the load has to walk to a drop-off, not by distance from home, with a crowding penalty so gatherers spread out. When the best node of a resource is further than DropOffMaxDistance from every drop-off, the AI builds a camp out there instead. Camps whose resources are exhausted stop counting toward the camp limit.

Expansion. BuildOrder is a ladder walked top to bottom. The first rung below its count is pursued, and if it is unaffordable the AI saves up for it rather than skipping ahead to something cheap. Houses are raised outside the ladder whenever population headroom runs short. Past its desired villager and army counts, it keeps growing from surplus alone.

Layout. When the faction start has a settlement plan, buildings go into city blocks: one type per block, so houses and farms line up in rows and different buildings always have a street between them. Doors face the street nearest home.

Defences. Once the trigger building stands, the settlement walls itself in: a ring along the streets around the occupied blocks, with spare blocks inside, a gate where the main street on each side crosses the wall, and watch towers at the gates and corners. Gate spots are never walled, so villagers are never sealed in. When the town fills its spare blocks, a wider ring goes up and the old wall stays as an inner line.

Army. Train actions are walked in a rotation for a mixed army. Defence is leashed to the faction’s own ground, and intruders get the whole nearby group’s answer.

The AI is a solid demo opponent, not a competitive one: it has no scouting, no attack timing and no tactics beyond leashed defence.

The AI’s town about six minutes in: buildings grouped by type, camps out at the forest, and its wall ring going up.

Factions and diplomacy

FRTSKitFactionData is the immutable archetype, a row in DT_Factions. ARTSKitFactionState is the live, replicated half, seeded from it at match start: resources, population, relations and colours. Relationships live per match on the game mode, default to Enemy, and can be asymmetric. ARTSKitPlayerState::FactionId is the only place “which faction am I?” is answered for a human player.

Save and load

URTSKitSaveLibrary::SaveMatch photographs the running match: faction stockpiles and diplomacy, every unit (including its cargo and current job), every building (scaffold progress, train queue, rally point), every node’s stock, and the camera. LoadMatch applies it to the same map, live. Both run on the server only. Orders in flight, fog and dead things are deliberately not saved.

The game mode can auto-load a slot at startup, which is what makes F5 and F9 feel like a real quicksave. The RTSKitSave and RTSKitLoad console commands do the same with a named slot.

Multiplayer model

RTSKit is built server-authoritative from the start. Orders are the only thing a client sends: the player controller turns each one into a server RPC, and the command library validates it there. Units, buildings and resource nodes replicate, and so does each faction’s live state. Selection stays local. Training progress bars run from replicated timestamps, so they add no traffic.

RTSKit 1.0 provides the replication and command model, not a front end: there is no lobby, matchmaking or campaign flow.

Map authoring actors

Actor	What it does
ARTSKitMapDefinition	One per level: how big the world is, where the water line sits, and how the minimap photographs it
ARTSKitFactionStart	A faction’s start: list what it starts with, press Populate to lay out the starting village on its settlement plan. Set Seed to keep a layout
ARTSKitResourceScatter	Scatters the wilderness: forests in clumps, mines as lone finds, berry patches between

Everything is seeded and reproducible, and all of it works on fixed maps and on infinite streaming terrain. ARTSKitFactionStart was formerly called RTSKitVillageCenter; redirects carry old maps across.

HUD

The HUD has three layers:

• ARTSKitHUD draws the drag marquee and the hover health bars on the canvas, and creates the HUD widget.
• URTSKitHUDWidget is the base class for your HUD. It solves the replication race: its Blueprint events fire with real numbers whichever order the faction, the player state and the game state arrive in.
• URTSKitLocalPlayerSubsystem is one stable object for widgets to bind to.

The command card is built from the actions the whole selection shares, with affordability, population and tag gating, and a formatted hover tooltip. Resource counters are driven by DT_Resources, alongside a population readout and a match clock. WBP_HUD is a complete HUD to start from.

The demo HUD, WBP_HUD: resource counters and population along the top, the command card and selection panel bottom left, and the minimap bottom right.

Data table reference

Four tables define the game. The row name is always the ID.

DT_Units

Units, buildings and resource nodes in one table, separated by Kind.

Field	Applies to	Meaning
DisplayName, Description, Icon, IconMask	All	Panel presentation; the mask marks the faction-tinted part
Kind	All	Unit, Building or Resource
SkeletalMesh, AnimClass	Units	Visuals
StaticMesh, MeshScale	Buildings, nodes	Visuals; the scale also counts in the grid footprint
WallVariants, WallVariantsFoundation	Walls	Meshes per adjacency pattern, for autotiling, and the same set for the under-construction state
FootprintRadius, MaxPlacementSlope	Buildings	Placement checks
BuildTime, ConstructionMesh	Buildings	Villager-seconds and the scaffold
PopulationProvided	Buildings	Raises the owner’s cap
AcceptedResources	Buildings	Makes it a drop-off
GateOpenRadius, GateOpenMesh	Buildings	Makes it a gate
RubbleMesh	Buildings	Wreck left on death
GatherRate, GatherCapacity	Units	Makes it a gatherer
ProvidedResourceId, NodeAmount, GatherRadius	Nodes	What it yields, how much, and from how close
DepletionStageMeshes, bStagesGrow	Nodes	A mesh per stock stage; grow for farms
bAutoReplant, ReplantCost	Nodes	The farm cycle
AttackAnim, DeathAnim, WeaponMesh, AttackToolMesh	Units	Combat presentation
AttackInterval, AggroRadius	Units	Combat behaviour: seconds between damage ticks, and how close an idle unit engages
BuildAnim, BuildToolMesh	Units	The looping clip and the tool (the hammer) while constructing
HaulMontage	Units	Upper-body montage played while hauling a load, alongside the carry mesh
CorpseNodeId	Units	Resource node left on death
Actions	All	The DT_Actions rows this entity offers
Stats	All	Free-form map: Health, Attack, Armor, Range, Speed

DT_Actions

The command card.

Field	Meaning
DisplayName, Description, Icon, IconMask, HotkeyLabel	Button presentation
SlotIndex	Fixed grid position, so a button never moves
ActionType	Build, Train or Command
SpawnUnitId	The DT_Units row produced
SpawnActorClass	Optional; falls back to the game state’s default class
bLinePlacement	Build as a dragged line of segments (walls)
Cost, PopulationCost, TrainTime	Price and time
RequiredFactionTags	Tech and age gating

DT_Resources

Resource types: display name, icon, colour, HUD sort order and visibility, plus the presentation of gathering it: the cursor, the carry mesh, the tool mesh and the looping work animation.

DT_Factions

Faction archetypes: display name, colours, icon, controller type (Human, AI or Neutral), starting resources, starting population cap and faction tags. Diplomacy is not here: who is allied with whom is a property of a match, so it lives on the game mode.

What the demo tables ship with

• Units: Villager, Infantry, Swordsman, Spearman, Archer, Crossbowman, Scout, Monk, Priest and Hero, plus Deer, Boar and Sheep.
• Buildings: Town Centre, House, Mill, Lumber Camp, Mining Camp, Barracks, Archery Range, Blacksmith, Watch Tower, Wall and Wall Gate.
• Nodes: Tree, Berry Bush, Gold Mine, Stone Mine and Farm.
• Resources: Wood, Food, Gold and Stone.
• Factions: Vanguard (human), Scourge (AI) and Wildlife (neutral).

Row structs deliberately have no EditConditionHides: conditionally hidden properties inside a row struct crash the row editor in UE 5.4. Every field is always visible, and the Applies to column above tells you which ones matter for each kind.

Class reference

Class	Role
ARTSKitGameModeBase	Spawns faction states, applies match diplomacy, hands humans their slots, spawns AI commanders
ARTSKitGameState	Faction registry, the four DataTables, placement grid size, match clock
ARTSKitFactionState	Live faction: resources, population, relations, colours
ARTSKitPlayerState	Which faction a human commands
ARTSKitPlayerController	Selection, orders, placement mode, cursors, quick save keys
ARTSKitCameraPawn	The RTS camera
ARTSKitHUD	Marquee and hover bars; creates the HUD widget
URTSKitHUDWidget	Base class for your HUD: faction, resource, population and selection events
URTSKitLocalPlayerSubsystem	One stable object for widgets to bind to
URTSKitMinimapWidget, URTSKitMinimapAngledWidget	Minimap, square or diamond
ARTSKitUnit	Units: steering, gathering, construction, combat
ARTSKitBuilding	Buildings: construction, training, gates, rubble, wall autotiling
ARTSKitResourceNode	Nodes: stock, stages, replanting
ARTSKitPlacementGhost	The placement preview
URTSKitStatsComponent	Live per-entity stats
ARTSKitAICommander	The AI brain
ARTSKitMapDefinition	Map bounds, water, minimap capture
ARTSKitFactionStart	Starting settlement, settlement plan
ARTSKitResourceScatter	Wilderness scattering
URTSKitCommandLibrary	The validated command implementations
URTSKitSelectionLibrary	Turns a selection into display info
URTSKitActionLibrary	The command card query
URTSKitFactionLibrary, URTSKitResourceLibrary	Table lookups
URTSKitSaveLibrary	Save and load
IRTSKitCommander, IRTSKitSelectable	The two interfaces the design rests on

Blueprint events

Implement these in Blueprint children. Every one fires on all machines unless noted.

Class	Events
Building	On Construction Completed, On Unit Trained, On Gate State Changed, On Building Destroyed, On Faction Changed, On Selection Changed
Unit	On Died, On Faction Changed, On Selection Changed
Resource node	On Depleted, On Replanted (server only), On Selection Changed
HUD widget	On Faction Ready, On Resource Updated, On Population Updated, On Selection Updated
Placement ghost	On Placement Validity Changed
Player controller	On Placement State Changed, On Build Result
Map authoring	On Faction Start Populated, On Scatter Populated
Camera	On Quick Save, On Quick Load

Console commands

Command	What it does
RTSKitSave [slot]	Save the match
RTSKitLoad [slot]	Load a match onto the open map
RTSKitToggleProjection	Flip between perspective and isometric
RTSKitDebugFactions	Dump every faction state, its colours and resources
RTSKitDebugCommandAll	Throw every unit in the world at the ownership gate and log what it accepted

Recipes

Add a unit type

1. Add a DT_Units row: Kind = Unit, a skeletal mesh, stats and an icon.
2. Add a DT_Actions row: ActionType = Train, SpawnUnitId = your row, a cost and a train time.
3. Add that action’s name to the producing building’s Actions.

No new classes and no Blueprint work.

Make the Scout, Monk, Priest or Hero trainable

These four already have DT_Units rows, so only the last two steps of the recipe above are needed:

1. Add a DT_Actions row: ActionType = Train, SpawnUnitId = Scout (or Monk, Priest, Hero), a cost, a PopulationCost and a train time.
2. Add that action’s name to the Actions of the building that should train it.

Add a building

1. Add a DT_Units row: Kind = Building, a static mesh, BuildTime, ConstructionMesh, FootprintRadius, stats, and AcceptedResources if it is a drop-off.
2. Add a DT_Actions row: ActionType = Build, SpawnUnitId = your row, a cost.
3. Add the action to the Villager’s Actions.

Add a resource

1. Add a DT_Resources row: name, icon, colour, sort order, carry mesh, tool and gather animation.
2. Add a DT_Units row with Kind = Resource and ProvidedResourceId pointing at it.
3. Add the resource to a drop-off building’s AcceptedResources.

Swap the AI

Set AICommanderClass on the game mode to your own subclass, or to a Blueprint child with different tunables. To write a brain from scratch, implement IRTSKitCommander on any actor and issue the same orders the player does.

Build your own HUD

Reparent your widget to URTSKitHUDWidget. Build counters in On Faction Ready, update them in On Resource Updated, rebuild the command card in On Selection Updated from GetSelectionActions, and call TriggerAction from the buttons.

Use your own art

1. Point the rows at your meshes: SkeletalMesh and AnimClass for units, StaticMesh for buildings and nodes.
2. Give every mesh the same two material slots: slot 0 for everything else, slot 1 for the faction-coloured parts. See Faction colour.
3. Set the placement grid size to match your art. 200 cm matches the shipped meshes.

Notes and gotchas

• Faction colour lives on material slot 1 (M_Faction). Slot 0 is the shared palette atlas and must be left alone, or every unit gets its own material and draw-call merging is lost. Custom Primitive Data needs the parameter marked for it on the material; the dynamic material path works with any vector parameter.
• The silhouette material must be unlit and translucent, with depth test disabled and a FactionColor parameter.
• The placement grid size should match your art. 200 cm matches the shipped meshes: the wall is 200, the gate 400, the house 390 and the town centre 800.
• Navigation must be dynamic with invokers, and the level needs a NavMeshBoundsVolume, or units fall back to straight-line steering.
• DataTable row structs have no EditConditionHides, on purpose: conditionally hidden properties inside a row struct crash the row editor in UE 5.4.
• ARTSKitFactionStart was formerly RTSKitVillageCenter. CoreRedirects in Config/DefaultRTSKit.ini carry old maps across.
• Walk speed and feet. The walk cycle is authored at 124 cm/s. A unit moving faster or slower than that without scaling its play rate will skate.

Not in V1.0

Stated plainly, so nobody buys the wrong thing:

• No fog of war. FRTSKitVisionState is a stub that reveals everything.
• No tech tree or upgrades. The hooks exist (RequiredFactionTags, faction tags), but the research system does not. The Blacksmith can be built but does nothing yet.
• No formations or stances. Groups move with simple spacing.
• No naval units or transport.
• No lobby, matchmaking or campaign flow. The multiplayer layer is the replication and command model, not a front end.
• The AI is a solid demo opponent, not a competitive one. It has no scouting, no attack timing and no tactics beyond leashed defence.
• No projectiles. The arrow, bolt and javelin ship as art, but units do not fire them.
• No fishing. The fishing rod ships as art only.
• Not every character is trainable in the demo. The Scout, Monk, Priest and Hero have art and table rows but no Train action; add one to use them.
• Art without gameplay. The Market and Temple meshes have no gameplay row.

FAQ

Do I need WorldGen?

No. WorldGen is optional. RTSKit runs on any terrain, and when a streaming world is present it cooperates with it: the WorldGen demo map runs the same game on infinite procedural terrain.

Do I need a C++ project?

Not to use RTSKit. You need one only to compile the plugin from source.

Which engine versions does RTSKit support?

Unreal Engine 5.4.

Can I use it in a game I already have?

Yes. RTSKit is a plugin, not a project, so it drops into an existing game.

Can I add units and buildings without C++?

Yes. Units, buildings and resource nodes are rows in DT_Units, and what they cost and produce is rows in DT_Actions. Adding a unit type is two rows and a name in a list. See Recipes.

Can I use my own art?

Yes. Point the rows at your meshes, and keep the two material slots (everything else on slot 0, faction parts on slot 1) so faction colour works. See Use your own art.

Does RTSKit support multiplayer?

The command model is multiplayer-ready: orders are server-authoritative, and units, buildings and nodes replicate. RTSKit 1.0 has no lobby, matchmaking or campaign flow, so you bring your own session front end.

Does the AI cheat?

No. It issues orders through the same IRTSKitCommander interface as the player, and the same server-side checks apply to both.

Is there fog of war?

Not in 1.0. The vision state is a stub that reveals everything.

Why does the Blacksmith do nothing?

Upgrades are not in 1.0. The Blacksmith has a row, a cost and a mesh, and the tag hooks for gating exist, but there is no research system yet.

Do archers fire arrows?

No. Archers and Crossbowmen attack from range, but 1.0 does not fire projectiles. The arrow, bolt and javelin ship as art.

How do I train the Scout, Monk, Priest or Hero?

Add a Train action row for the unit and list it on a building. See Make the Scout, Monk, Priest or Hero trainable.

Why do my units walk in straight lines through things?

Navigation is not dynamic, or there is no NavMeshBoundsVolume over the play area. Units then fall back to straight-line steering. See Navigation setup.

Why are units Pawns and not Characters?

In an RTS every unit is a simulated proxy on every client, so the character movement component’s prediction machinery is pure overhead. RTSKit units steer directly with a ground trace, route through the navmesh, and have a stuck watchdog.

Can I change the controls?

Yes. All input is Enhanced Input; supply your own mapping context in place of IMC_RTSKit.

Can I get a classic isometric look?

Yes. The camera switches between perspective and orthographic at runtime. Try the RTSKitToggleProjection console command.

What does a save include?

Faction stockpiles and diplomacy, every unit with its cargo and current job, every building with its scaffold progress, train queue and rally point, every node’s stock, and the camera. Orders in flight, fog and dead things are not saved.

Which platforms does it support?

Win64, Mac and Linux.

Changelog

1.0

First release.

• Selection, orders, economy, construction, walls and gates, training, population, combat, the AI commander, the minimap, and save and load, all driven by four DataTables.
• A server-authoritative command model shared by the player and the AI.
• Map authoring actors: map definition, faction starts with Populate, and resource scatter.
• A URTSKitHUDWidget base class and the WBP_HUD demo HUD, with square and diamond minimaps.
• Demo maps on a fixed map and on WorldGen terrain.
• A low-poly medieval art set: ten gameplay characters and a reference figure, eleven shared animations, three animals, the buildings with autotiling walls, gates, scaffolds and rubble, forty-one props, UI icons and cursors.

Get help

• YouTube: youtube.com/codelikeme for tutorials and release videos.
• Discord: ask on the CodeLikeMe Discord. Include your RTSKit version, your Unreal Engine version and, if you can, a screenshot.
